Features:-
>High Audio Performance with Immersive Experience.
>Monstrous 500mW Output Power.
>High-Performance ES9018K2M DAC Chip.
>Signal To Noise Ratio: 115dB.
>Triple Gain Mode: Low/Med/High( 6dB, 9dB, 16dB).
>Bass Boost:0dB, 6dB.
>PCM Up to 32-Bit/384kHz.
>DSD Up to DSD256 natively.
>Supports Microsoft Windows, Apple Mac OS X, iOS, Android Systems.
xDuoo XD-05 Basic is the latest portable DAC/AMP featuring a high-performance ES9018K2M DAC chip. It will be a perfect companion for enjoying high-quality music anytime anywhere. It can be used with a variety of devices including Android smartphones, Apple iOS smartphones, Windows PC, and Mac OS X PC. The feature-rich product enhances the way you enjoy your music with a crisp clear sound clarity with ample amplification to power up your demanding headphones with ease.
High-Quality Decoding:-
The xDuoo XD-05 Basic is equipped with a high-quality audio signal decoding chip from ESS Sabre Technologies, the ES9018K2M. It provides crisp decoding, capable of decoding PCM files up to 32-Bit/384kHz, and DSD files up to DSD256 natively.
Beautiful Sound Clarity:-
The xDuoo XD-05 Basic let’s you enjoy high-quality music anytime anywhere. You can easily connect it with your smartphone on to go or even your desktop PC at home using a USB connection with ease. It provides a smooth, brilliantly detailed rich sound clarity output.
Multiple Audio Signal Input Options:-

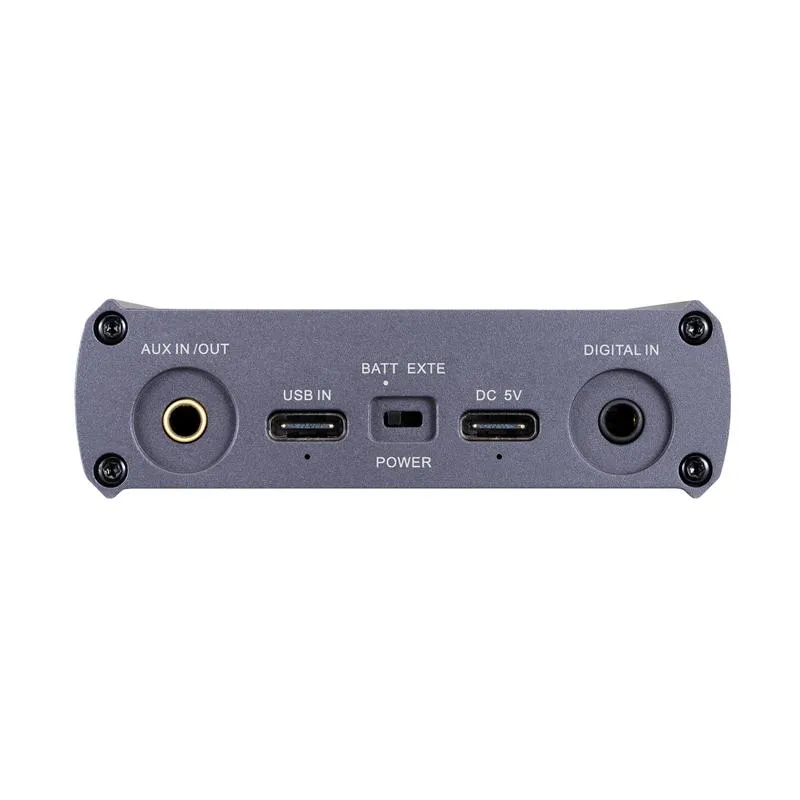

The xDuoo XD-05 Basic provides multiple options for audio signal input to its users. It supports the latest USB Type-C, Optical, and Aux input ports. User’s can connect the XD-05 Basic to their Android smartphones, Apple iOS devices, Windows/MAC PC with ease.
Three Gain Levels, Two Level Bass:-

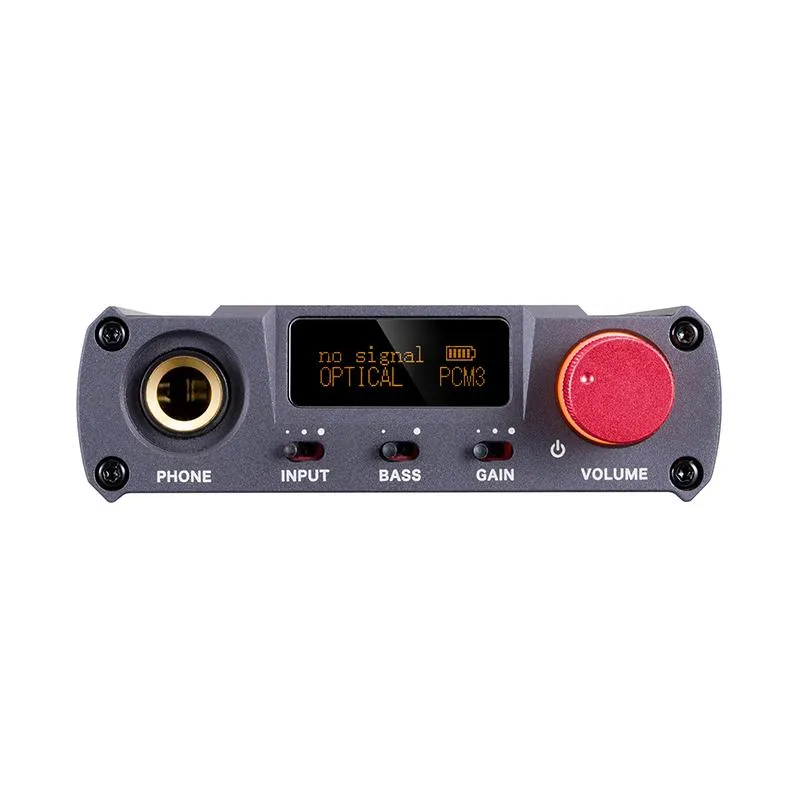

The xDuoo XD-05 Basic houses two switches on the front. One is to adjust between the three gain levels, Low/Med/High, with gain values of 6dB at low, 9dB at Med, and 16dB at high. The other switch is to adjust bass boost level with two levels, Low gain at 0dB, and High gain at 6dB.
Small Yet Powerful:-
Don’t go on the small size of the XD-05 Basic, it holds more than enough juice to power up your demanding headphones with ease. The headphone output port has a monstrous output power rating of up to 500mW at 32Ω Load that is more than enough for your headphones.
Premium Looks With OLED Display:-
The XD-05 Basic has elegant beautiful looks with a black body and red volume wheel. The device houses an OLED display in the front that displays the active input type, battery life, and more details.
Specifications:-
DAC Chip: ES9018K2M.
Gain: 6dB/9dB/16dB.
SNR:115dB.
Bass boost:0/ 6dB.
Frequency Response: USB/Optical/Coaxial: 20Hz-20kHz(±0.5dB), AMP: 10 Hz-60kHz(±0.5dB).
THD N:
USB : 0.0025%@1kHz.
Coaxial:0.0025%@1kHz.
Optical fiber: 0.0025%@1kHz.
AUX IN: 0.0018%@1kHz.
Output Power: 500mW[32Ω load).
Crosstalk: ≥75dB.
Charging Time: fast charging 1.2A≤5 hours, slow charging 500mA≤ 11 hours.
Playback Time: USB IN≥9H AUX IN≥ 16H, coaxial/optical fiber≥ 12H.
USB Sampling Rate:
PCM:16-32Bit/44.1-384kHz.
DSD: DoP/NATIVE mode, DSD64-256.
DXD:24-32Bit/352.8-384kHz.
Optical/coaxial Sampling Rate PCM:PCM: 16-24Bit/44.1-192kHz.
Applicable system: Win7, Win8, Win10, Mac OS X, iOS, Android system.
Package Contents:-
>xDuoo XD-05 Basic.
>USB Type-C Cable.
>Type-C to Type-A Adapter.
>USB Type-C short cable for Type-C phone connection.
>Micro-USB to Type-C Cable.
>Warranty Card.
>Quick Start Guide.
