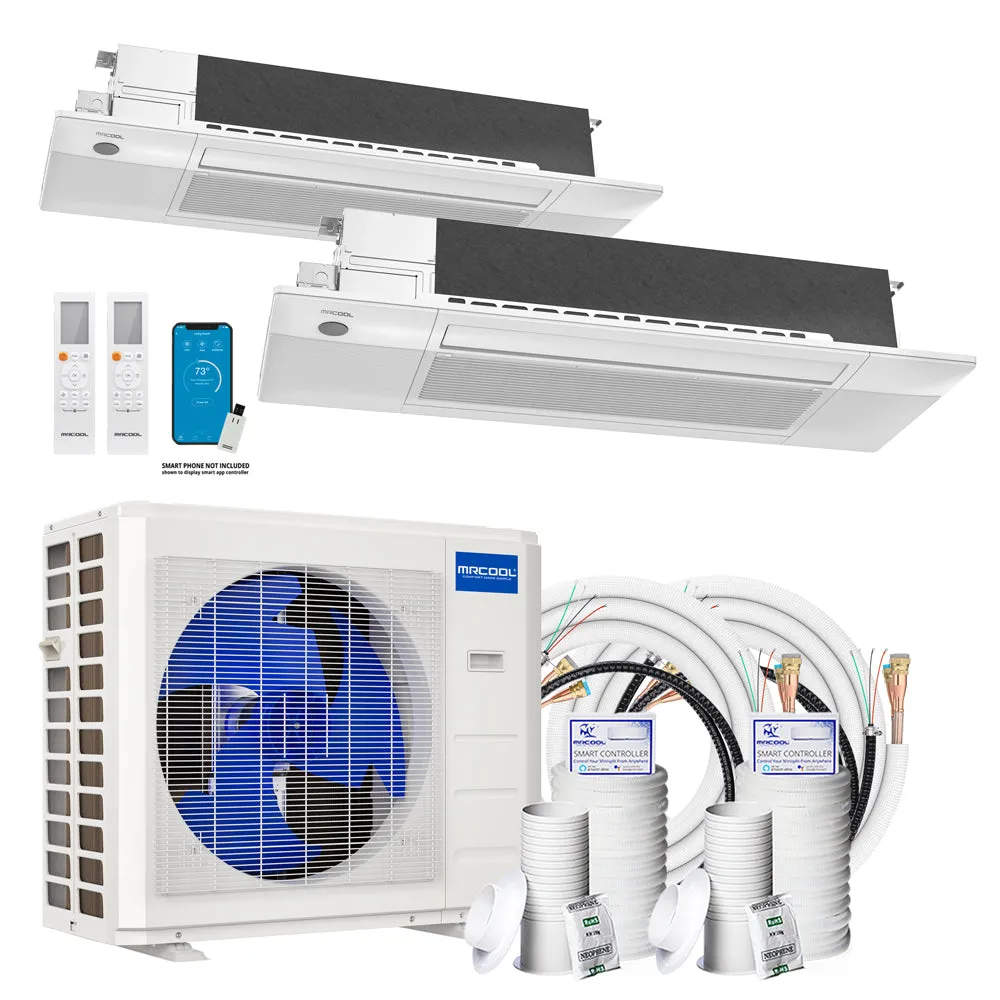

MRCOOL® DIY Mini Split 36,000 BTU 21.5 SEER 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump - 18K 18K

The MRCOOL® DIY Mini Split 36,000 BTU 21.5 SEER 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump - 18K 18K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool two distinct areas up to 900 square feet with the 18k air handlers, all while capable of an Energy Star-certified, 21.5 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

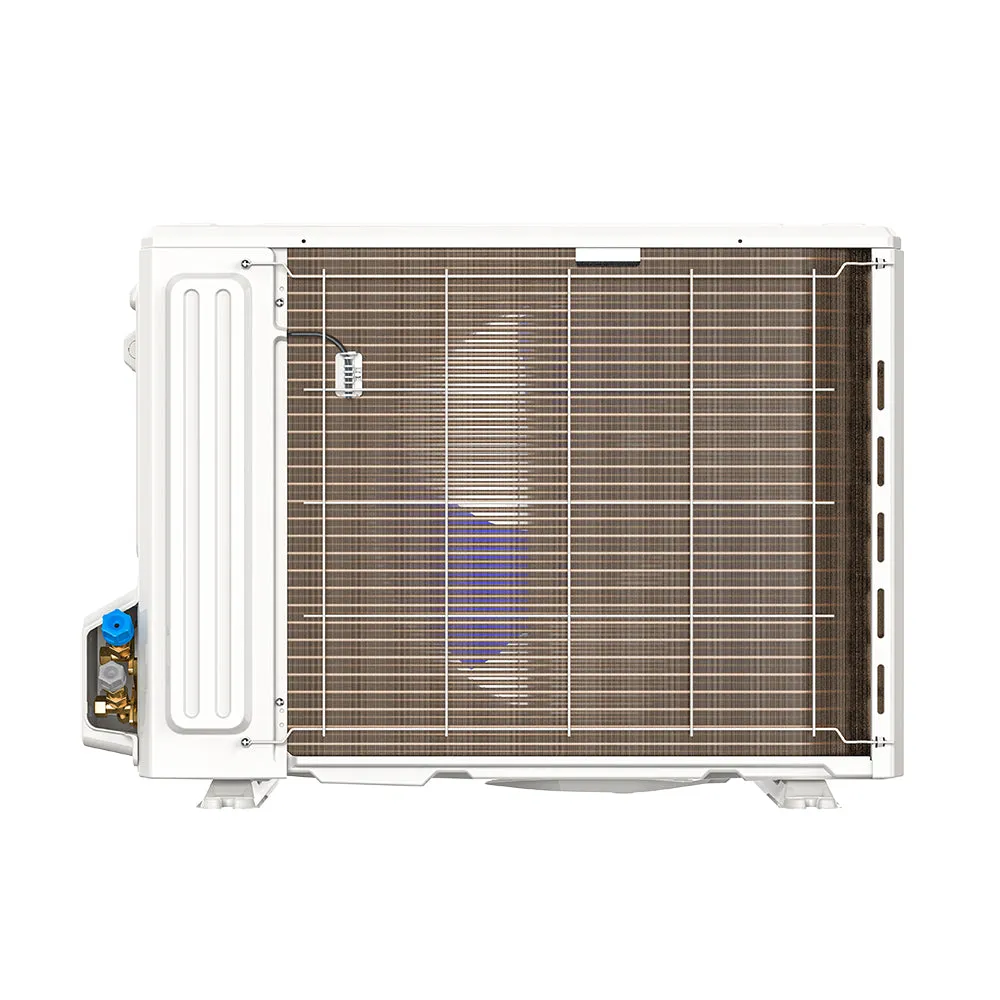

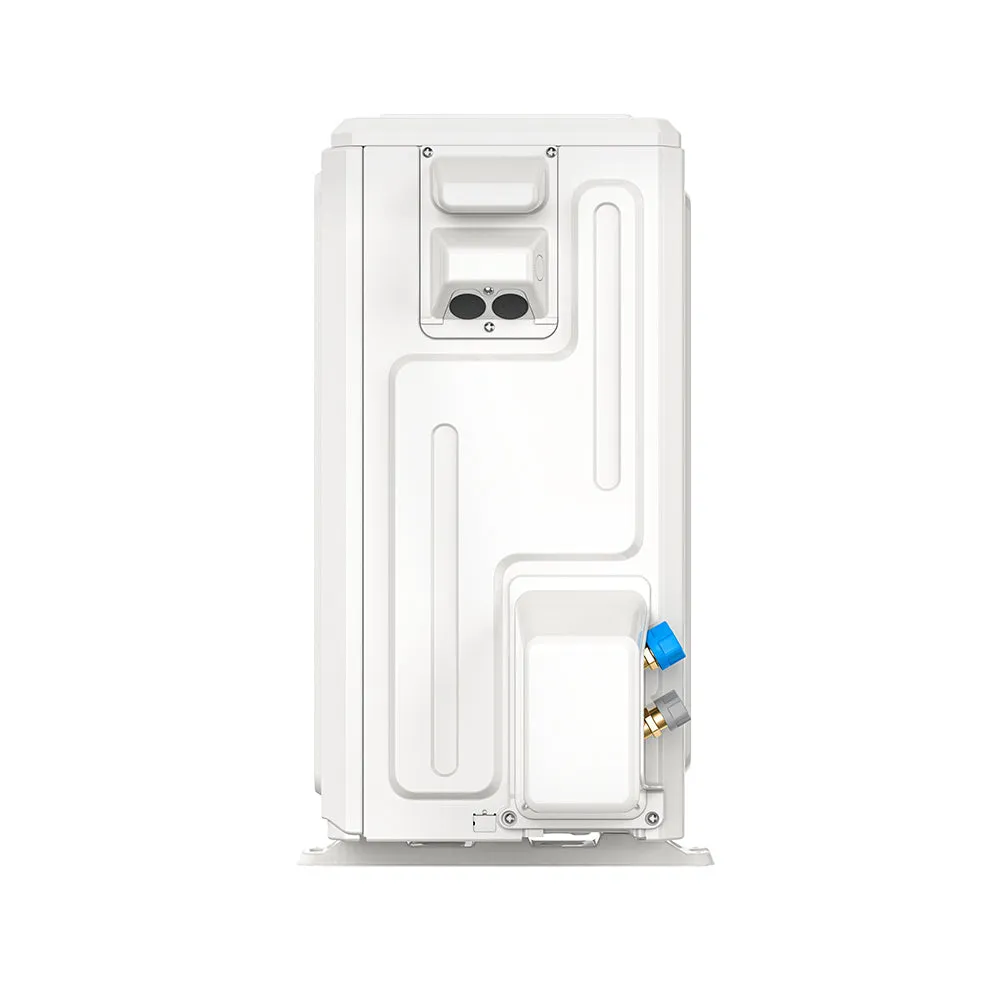

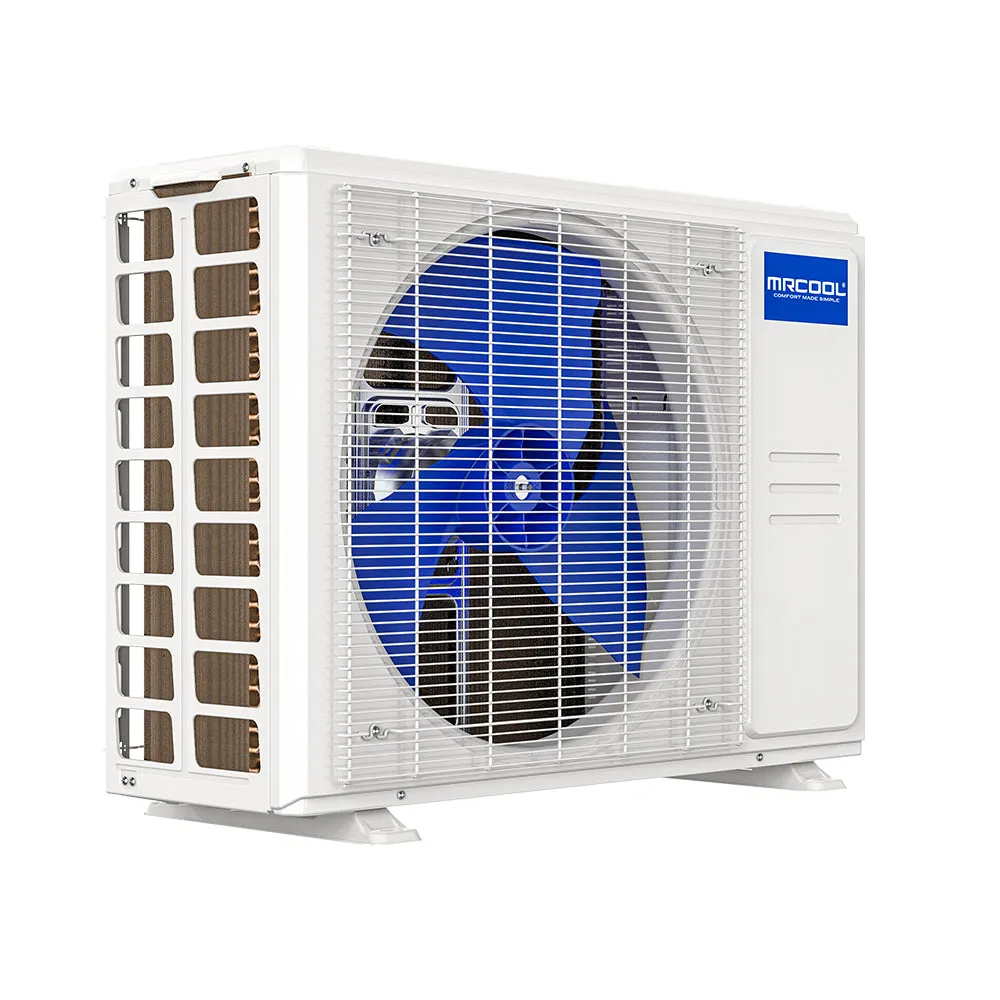

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser 230V - DIY-MULTI4-36HP230C

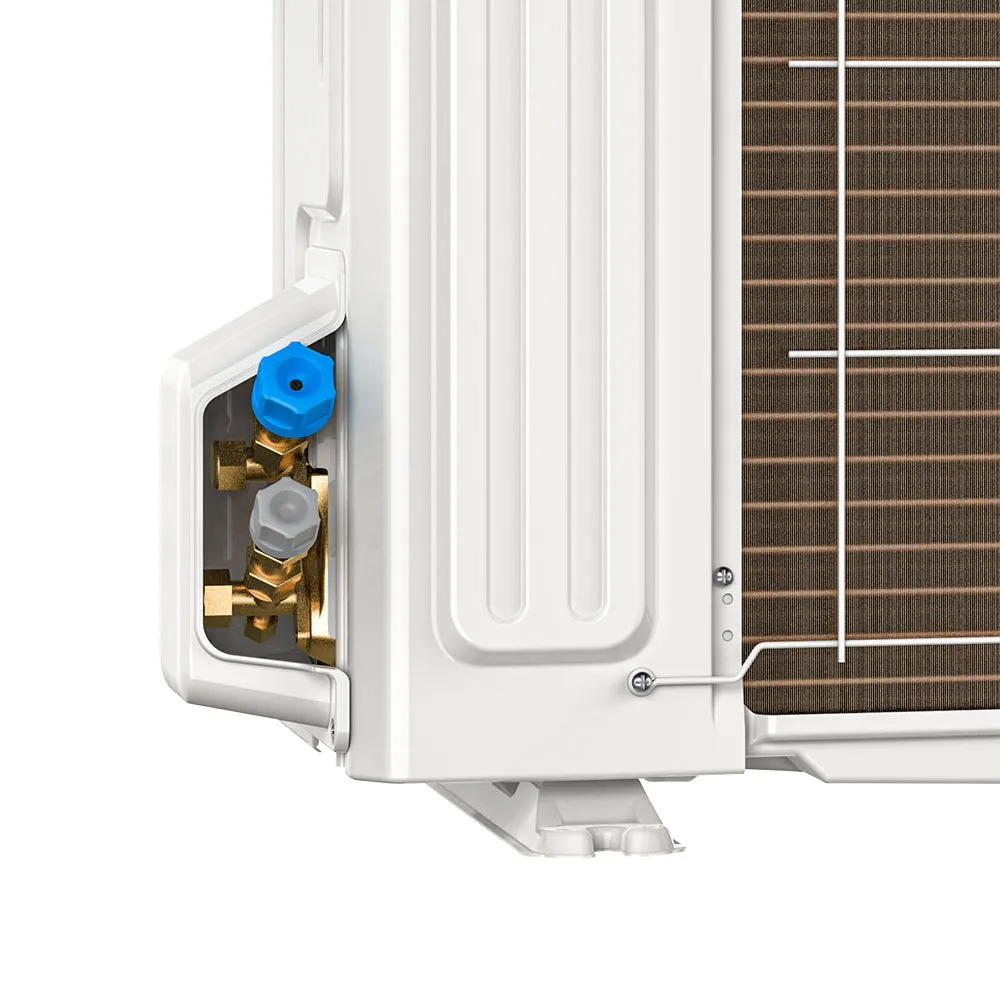

The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Features:

  • Up to 21.5 SEER
  • Delivers maximum performance even when temperatures reach -13°F
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
  • Energy-Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

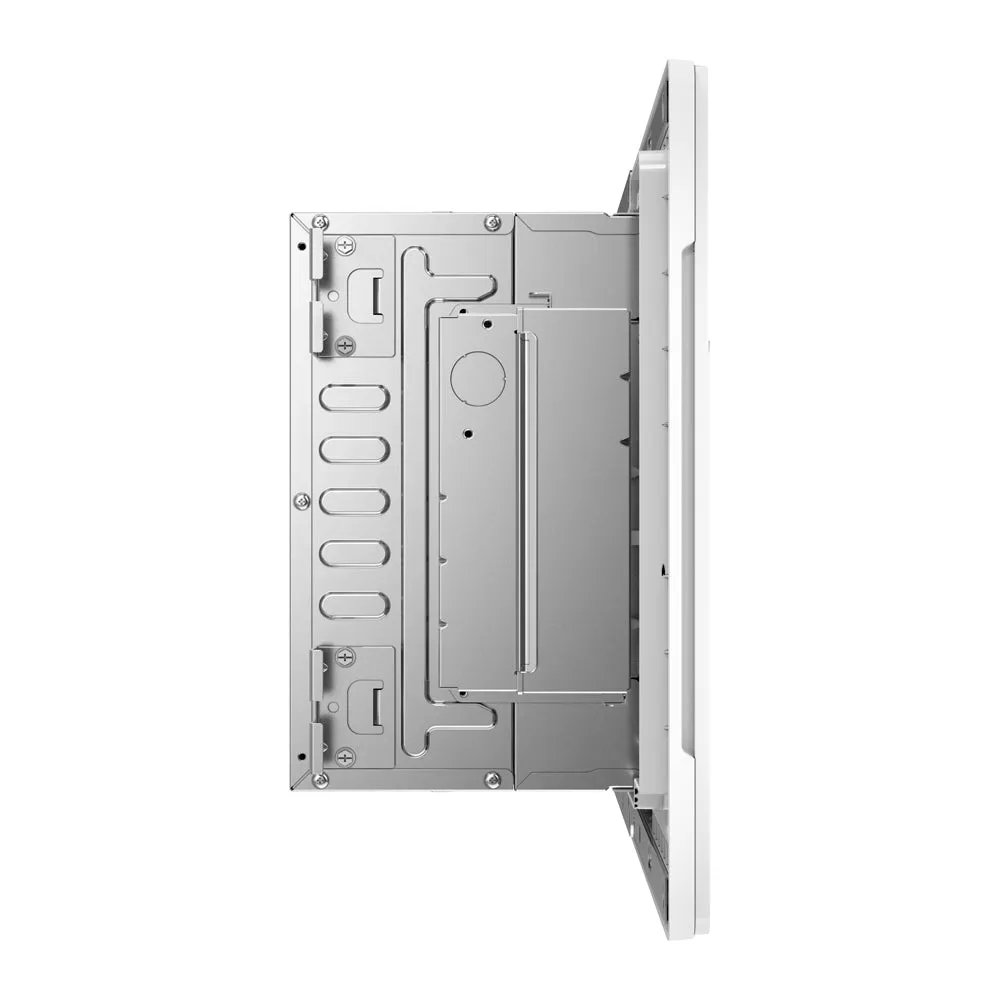

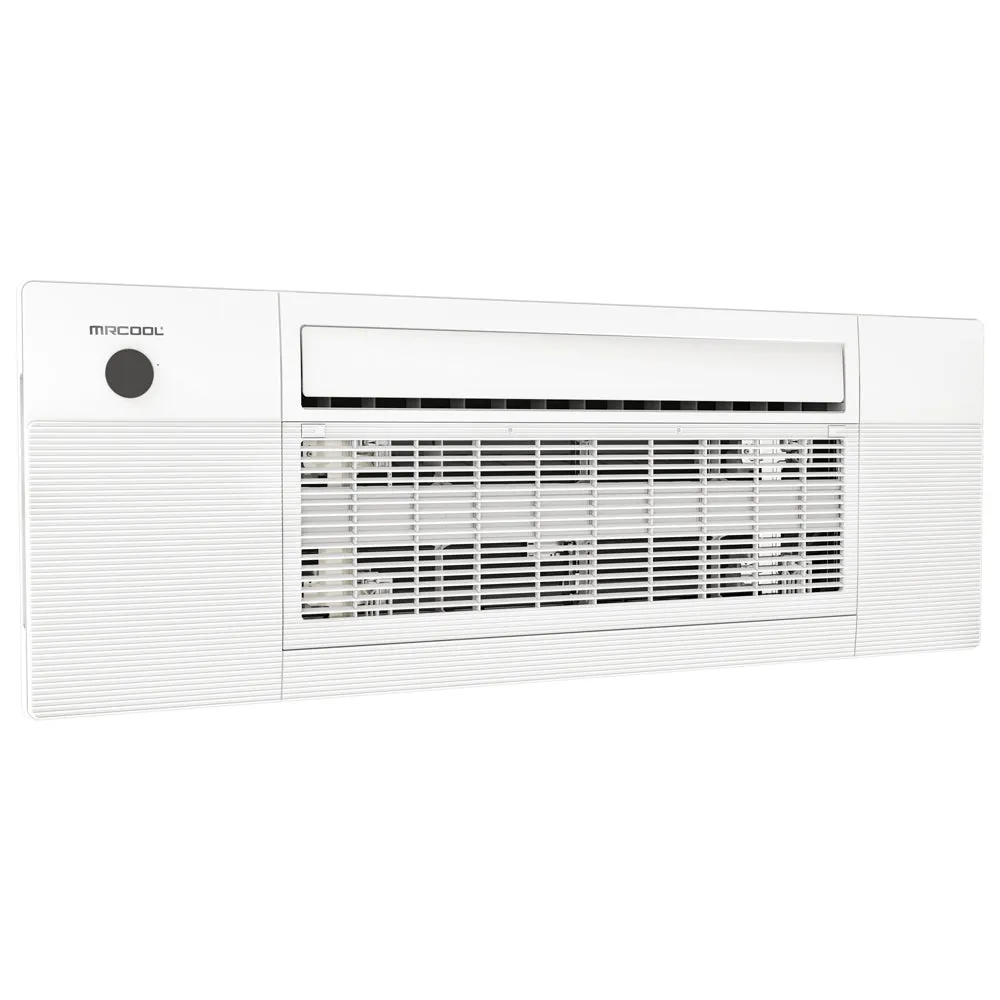

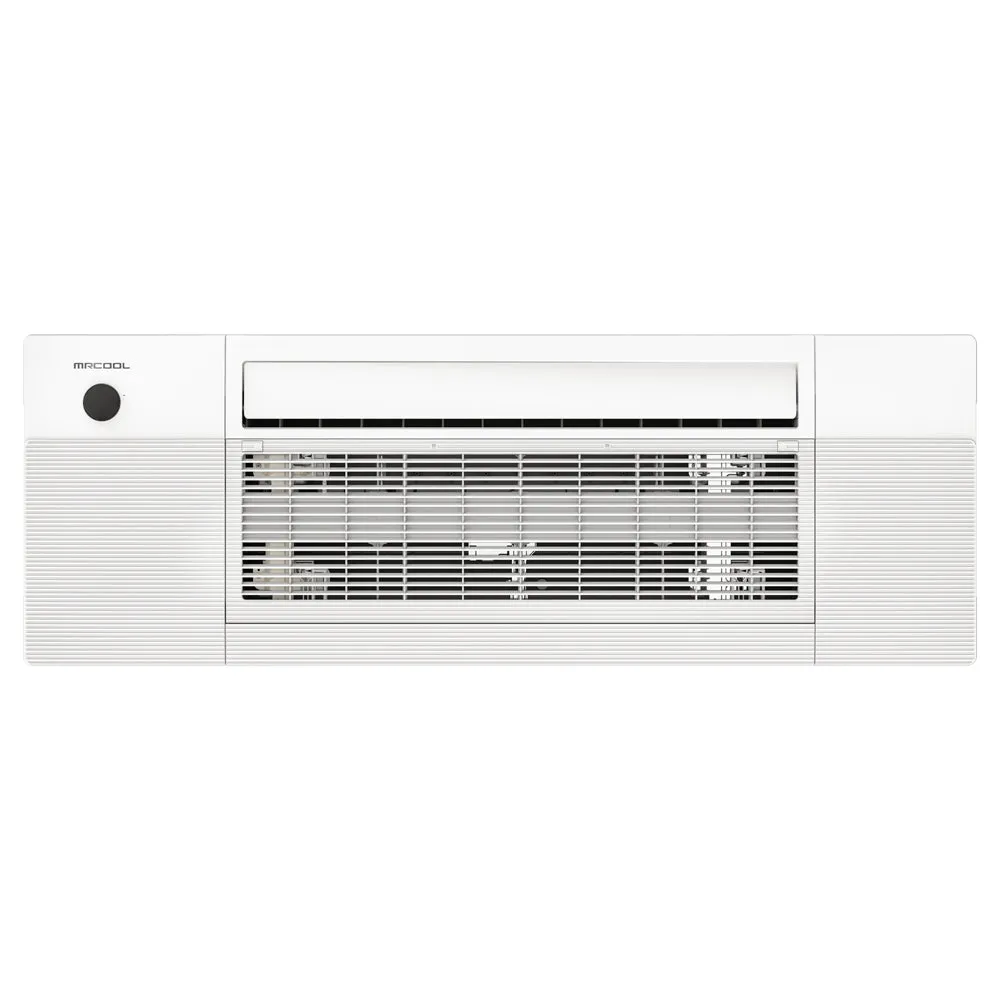

      MRCOOL® DIY Series OuttaSight™ 18k BTU Ceiling Cassette - DIYCASSETTE18HP-230C25

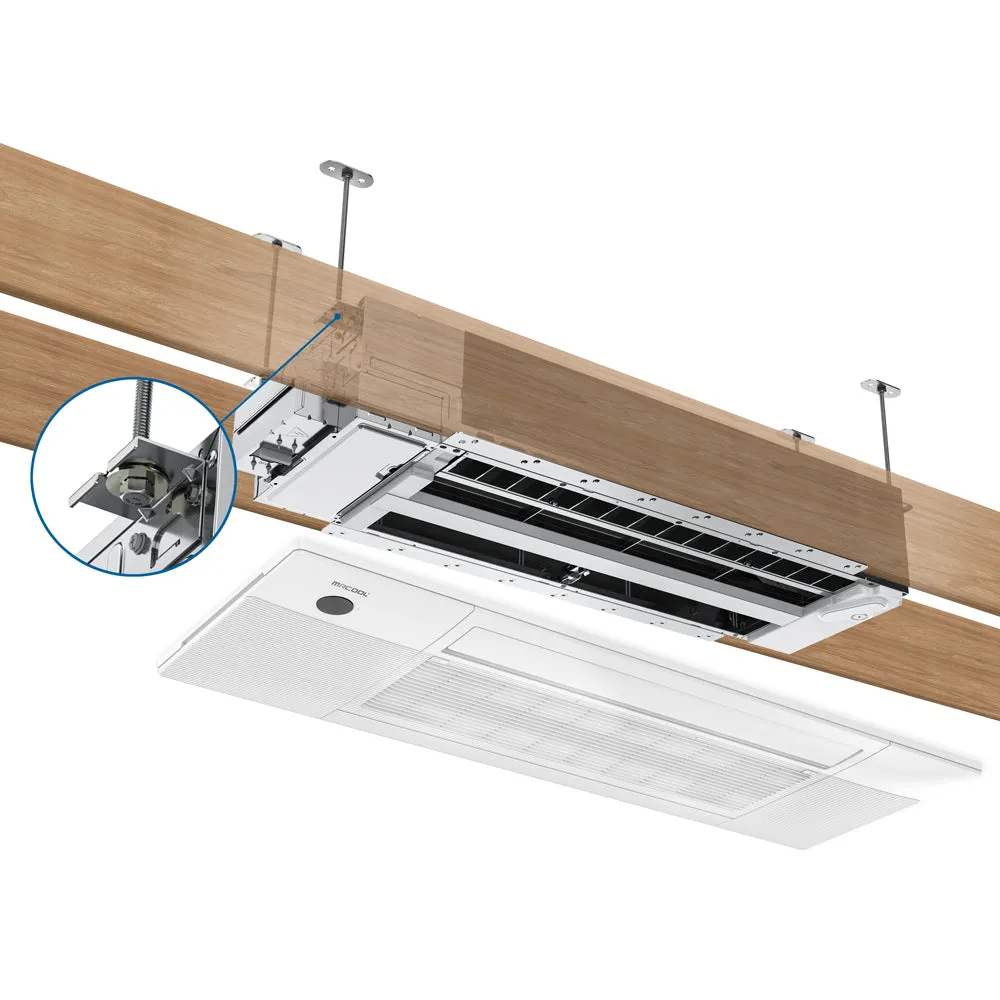

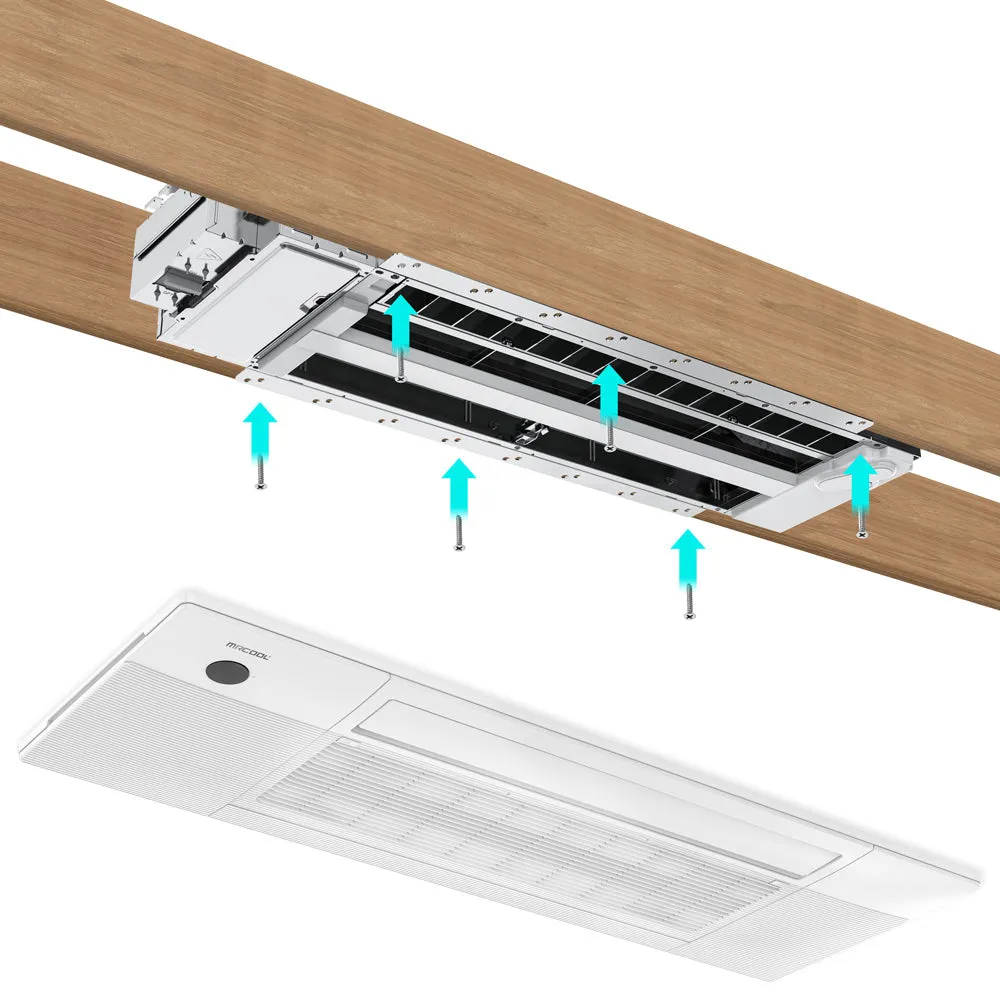

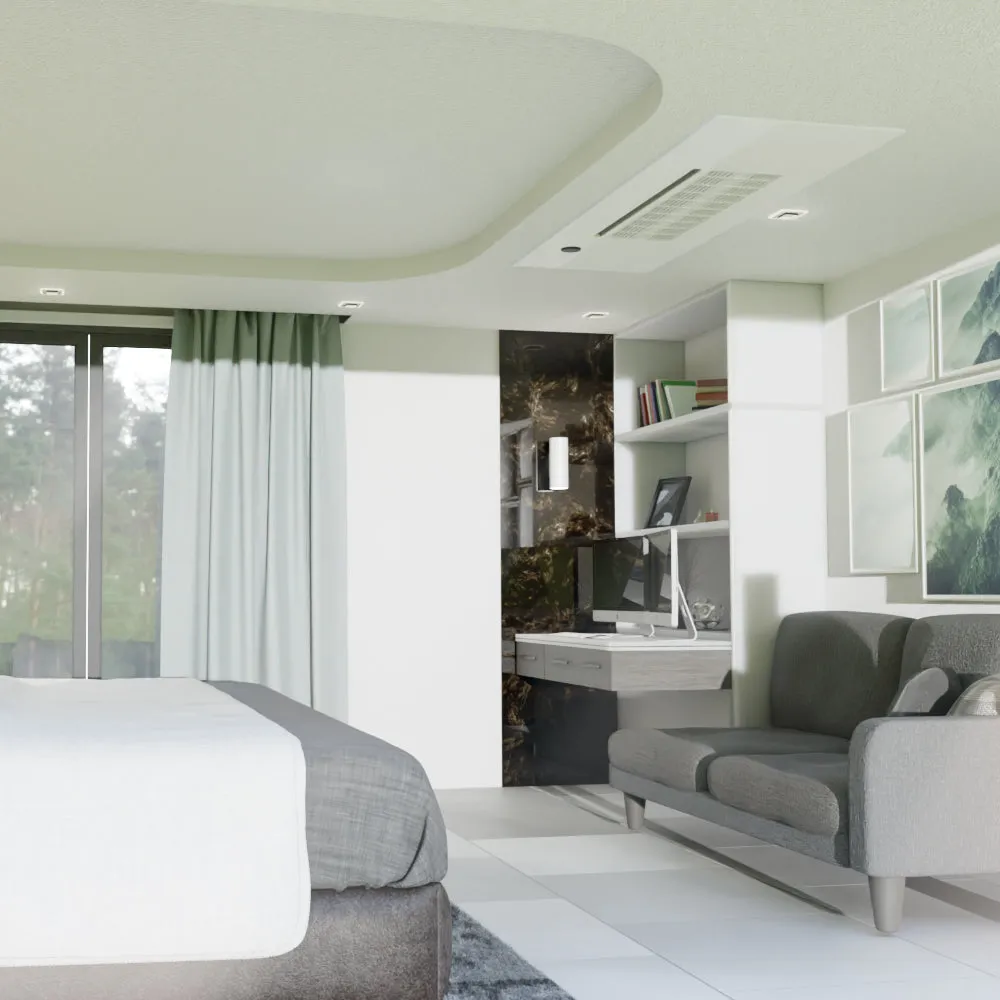

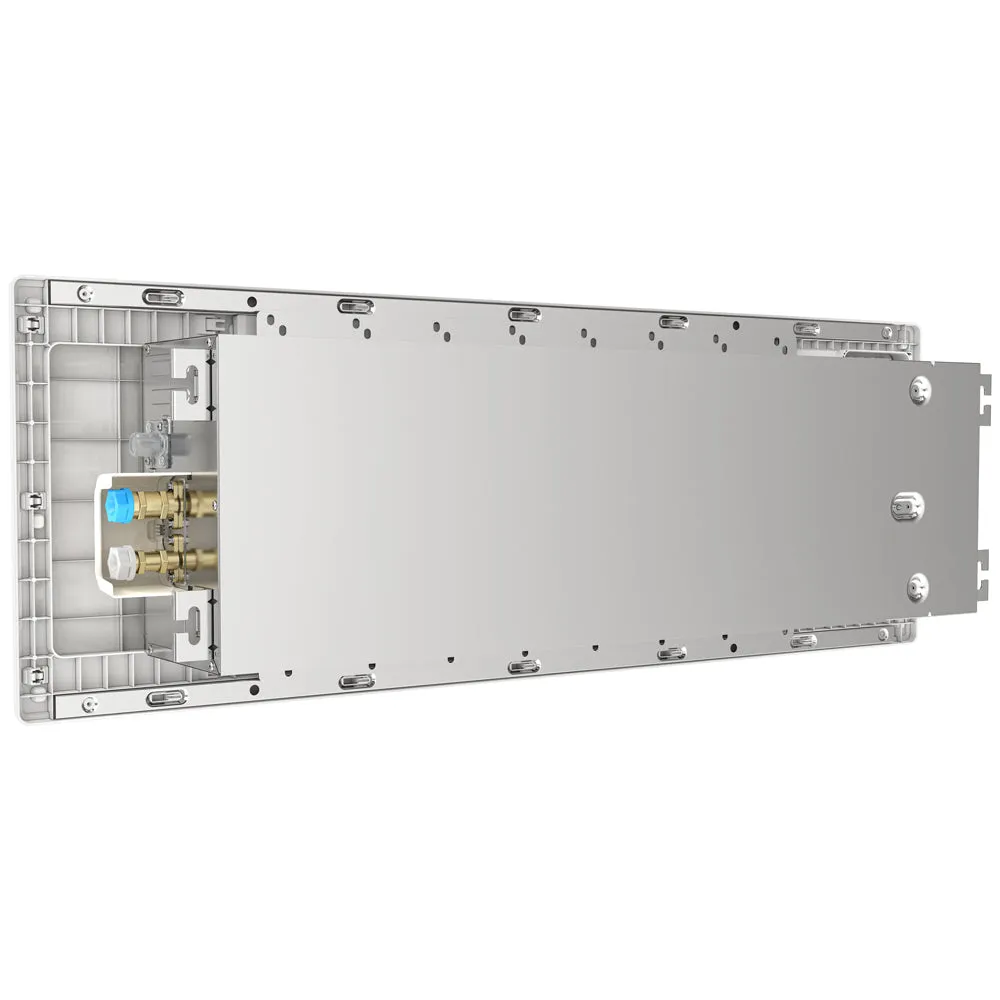

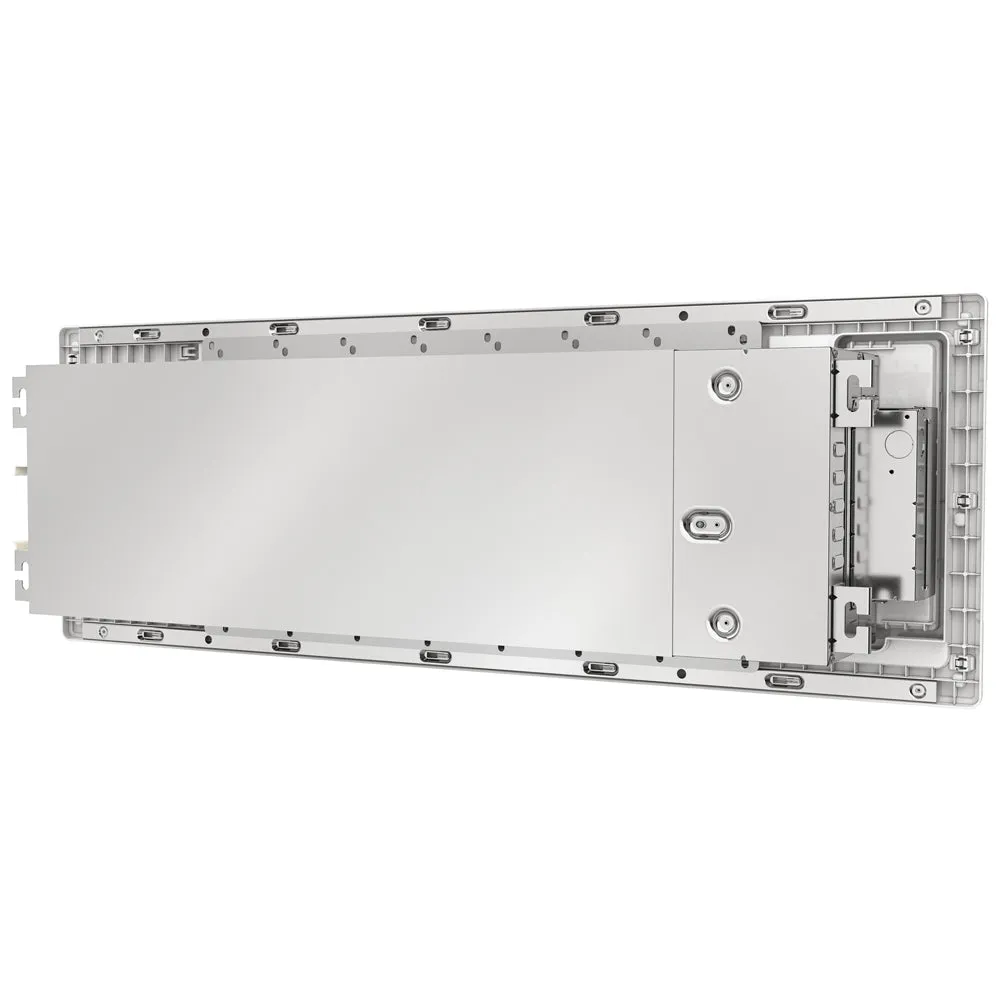

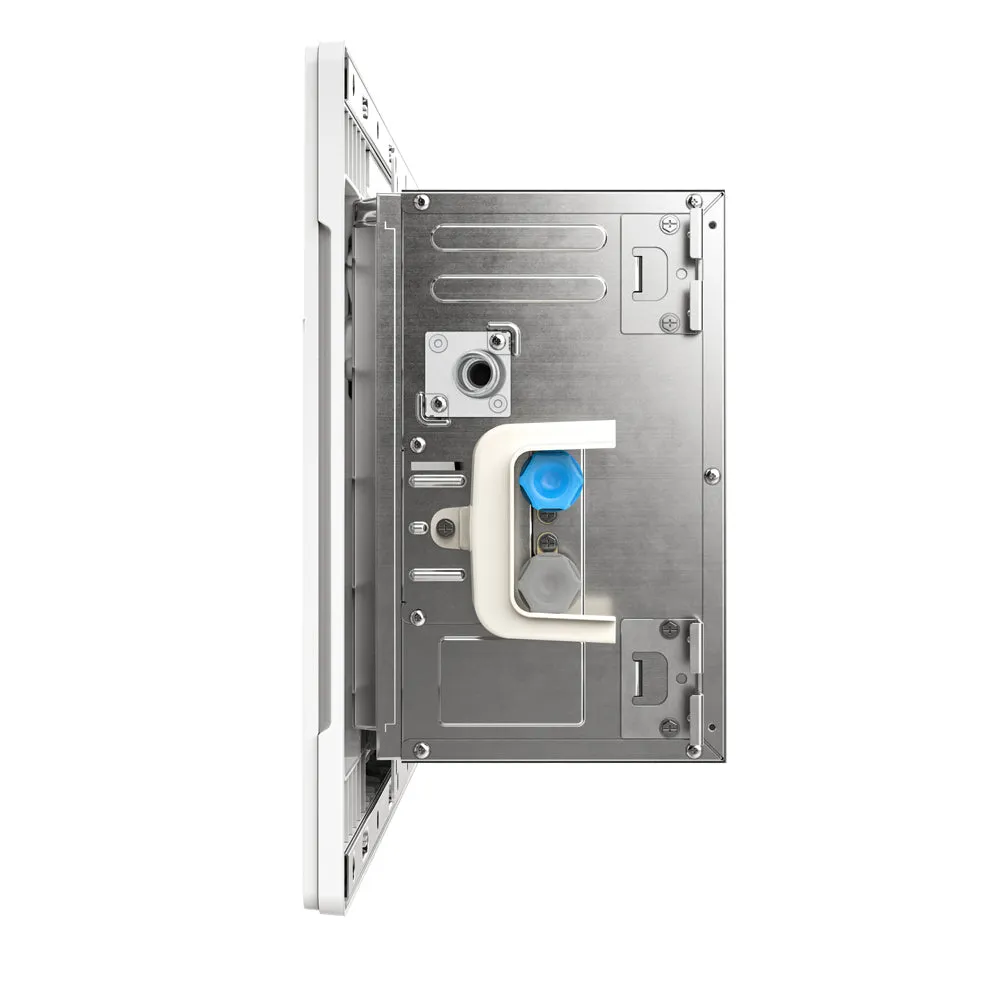

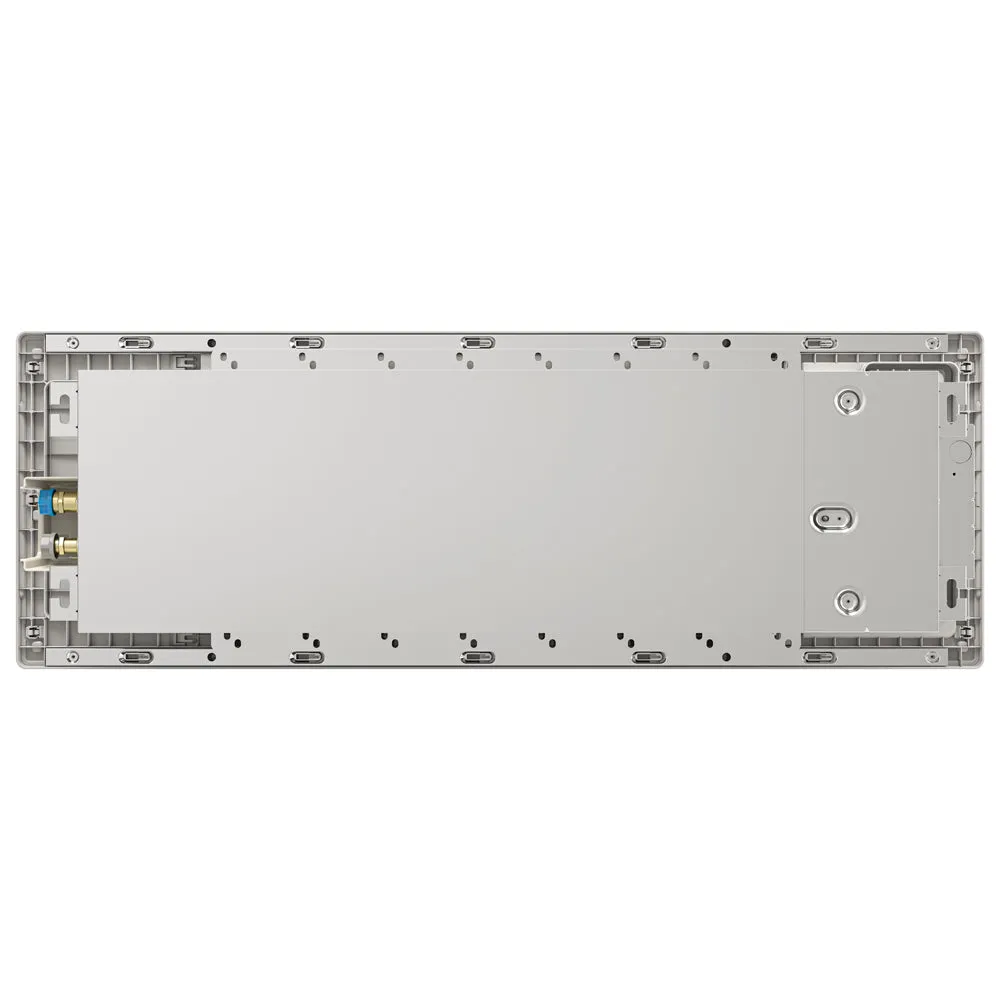

      The MRCOOL® DIY® Series 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.

      Features:

      • Ideal for spaces up to 900 square feet
      • Fits between 16" Ceiling Joists
      • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
      • Low Profile Installation
      • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16-inch center - including pre-manufactured I-joists.

        This bundle includes:

        • 1x
        • 2x
        • All accessories needed for a full installation

          Condenser Specifications

          MODEL DIY-MULTI4-36HP230C
          SEER 21.5
          EER 10.5
          HSPF hspf4/hspf5 : 11/8.5
          CFM 2147.06
          COOLING CAPACITY
          36000 BTU
          HEATING CAPACITY
          36000 BTU
          VOLTAGE
          208-230 V
          PHASE 1
          CYCLE 60 Hz
          MAX FUSE BREAKER
          45 A
          MIN CIRCUIT AMPACITY
          27 A
          COLOR White
          COLOR FAMILY
          White
          ZONE CAPACITY
          Up to 4
          REFRIGERANT TYPE
          R-410A
          REFRIGERANT VOLUME
          134.04 oz
          DECIBEL RATING
          65 dBA
          INVERTER Yes
          MIN AMBIENT COOL
          5F ~ 122F
          MIN AMBIENT HEAT
          -13F ~ 75.2F
          MAX LINESET LENGTH
          221 ft TOTAL
          LIQUID LINE SIZE
          1/4in (3/8in w/ adapter)
          SUCTION LINE SIZE
          1/2in (5/8in w/ adapter)
          COMPRESSOR MOTOR TYPE
          Rotary
          CONDENSER FAN MOTOR RPM
          1000/900/750
          WIFI COMPATIBILITY
          Yes
          APP COMPATIBILITY
          Yes
          WORKS WITH IOS
          Yes
          WORKS WITH ANDROID
          Yes
          REGISTERED WARRANTY
          Limited Lifetime Compressor
          BASE WARRANTY
          5-year Parts/7-year Compressor
          BASE PARTS WARRANTY
          5-year Parts
          REGISTERED COMPRESSOR WARRANTY
          Limited Lifetime Compressor
          BASE COMPRESSOR WARRANTY
          7-year Compressor
          CONTAINS ELECTRONICS
          Yes
          CONTAINS CHEMICALS
          Yes
          CONTAINS AEROSOL
          Yes
          CONTAINS COMPRESSED GAS
          Yes
          PROPOSITION 65 WARNING
          Yes
          NET DEPTH
          16.14 in
          NET HEIGHT
          31.89 in
          NET WIDTH
          37.24 in
          NET WEIGHT
          170.42 lbs
          GROSS DEPTH
          19.88 in
          GROSS HEIGHT
          35.04 in
          GROSS WIDTH
          42.91 in
          GROSS WEIGHT
          187.83 lbs


          18K Air Handler Specifications

          MODEL DIYCASSETTE18HP-230C25
          SEER Up to 21.8
          EER Up to 12.5
          HSPF hsph4/hspf5: 11.6/9.7
          COOLING CAPACITY
          17000
          HEATING CAPACITY
          19000
          VOLTAGE
          208/230
          PHASE 1
          CYCLE 60 Hz
          MAX FUSE BREAKER
          15 A
          MIN CIRCUIT AMPACITY
          3 A
          RATED LOAD
          1.5 A
          DECIBEL RATING
          40/28
          DECIBEL RATING LOW
          21 dBA
          DECIBEL RATING HIGH
          44 dBA
          MIN AMBIENT COOL
          60F ~ 90F
          MIN AMBIENT HEAT
          32F ~ 86F
          LIQUID LINE SIZE
          1/4in
          SUCTION LINE SIZE
          1/2in
          BLOWER MOTOR HP
          598/510/352
          BLOWER MOTOR SPEEDS
          4
          BLOWER MOTOR RPM
          1344/1184/1024
          FILTER TYPE
          Reusable
          FAN ONLY OPTION
          Yes
          QUIET MODE
          Yes
          SLEEP MODE
          Yes
          AUTO COOL
          Yes
          WIFI COMPATIBILITY
          Yes
          APP COMPATIBILITY
          Yes
          WORKS WITH IOS
          Yes
          WORKS WITH ANDROID
          Yes
          REMOTE CONTROL INCLUDED
          Yes
          REGISTERED WARRANTY
          Limited Lifetime Compressor
          BASE WARRANTY
          5-year Parts/7-year Compressor
          BASE PARTS WARRANTY
          5-year Parts
          REGISTERED COMPRESSOR WARRANTY
          Limited Lifetime Compressor
          BASE COMPRESSOR WARRANTY
          7-year Compressor
          HAS BATTERIES
          Yes
          CONTAINS ELECTRONICS
          Yes
          CONTAINS CHEMICALS
          Yes
          CONTAINS AEROSOL
          Yes
          CONTAINS COMPRESSED GAS
          Yes
          PROPOSITION 65 WARNING
          Yes
          RESTRICTED STATES
          GU;PR;VI
          NET DEPTH
          13.19 in
          NET HEIGHT
          8.98 in
          NET WIDTH
          50.31 in
          NET WEIGHT
          44.97 lbs
          GROSS DEPTH
          22.48 in
          GROSS HEIGHT
          22.64 in
          GROSS WIDTH
          57.60 in
          GROSS WEIGHT
          88.85 lbs
