MRCOOL® DIY Mini Split 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 12K 18K Air Handlers and Install Kit

The new 4th Generation MRCOOL® DIY Mini Split includes everything you need to cool and heat two different rooms. You'll be sent the MRCOOL DIY 27,000 BTU Multi-Zone Condenser, one MRCOOL 12,000 BTU Wall Mounted Air Handler, one MRCOOL 18,000 BTU Wall Mounted Air Handler, two MRCOOL Remotes, two MRCOOL Installation Kits, FREE Condenser Wall Mounting Brackets, and the best part about this system is that you can install it all by yourself!

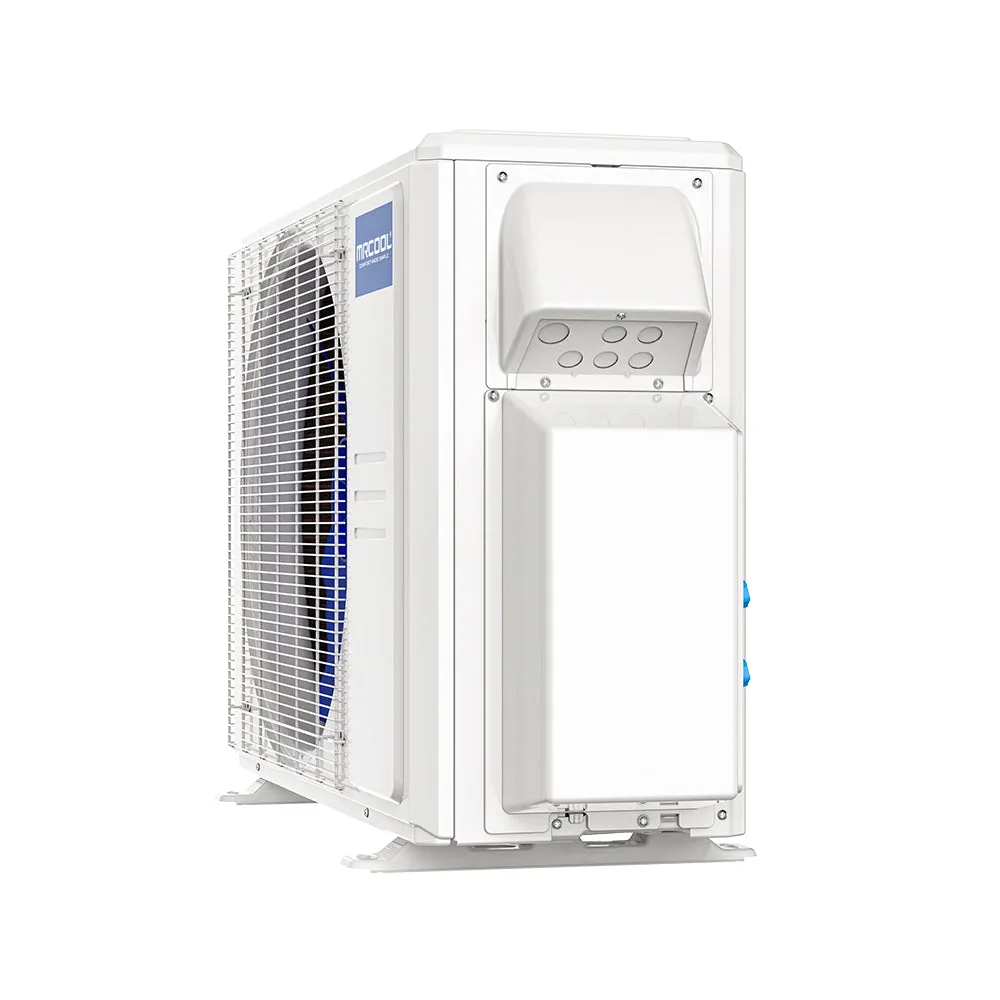

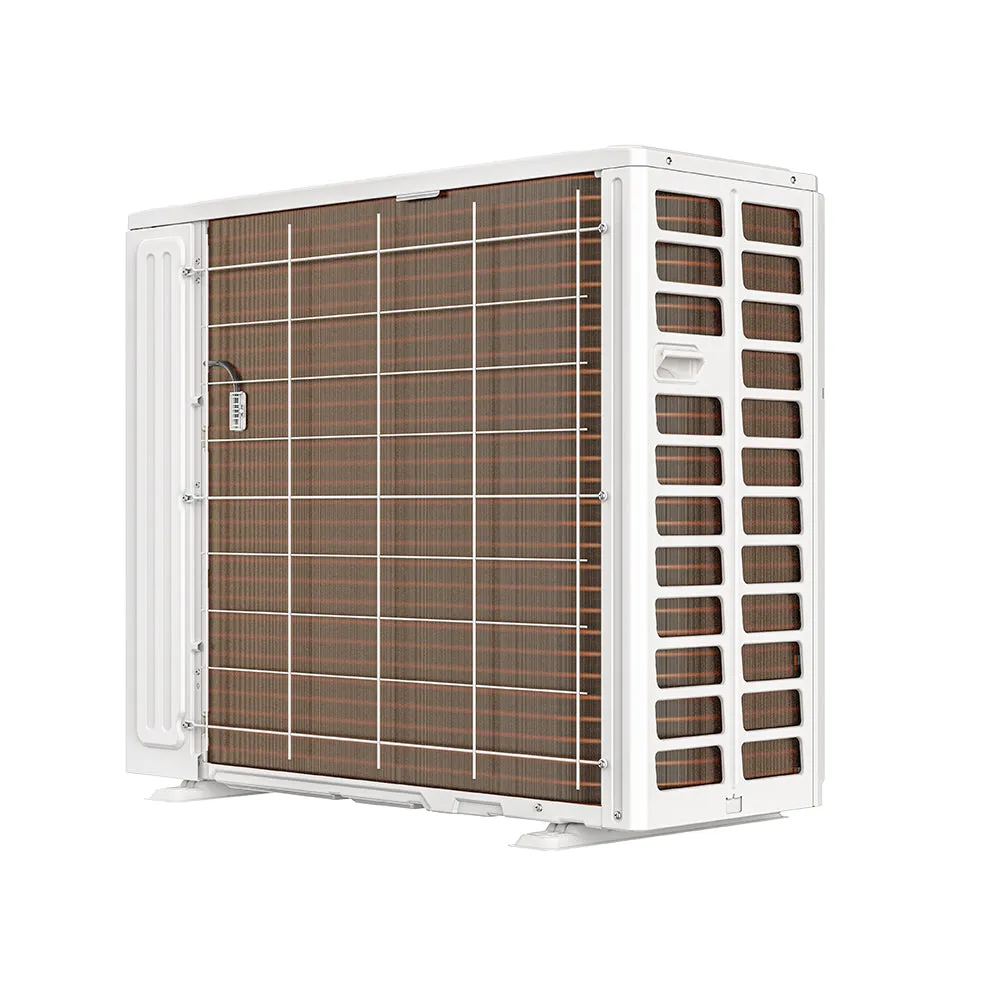

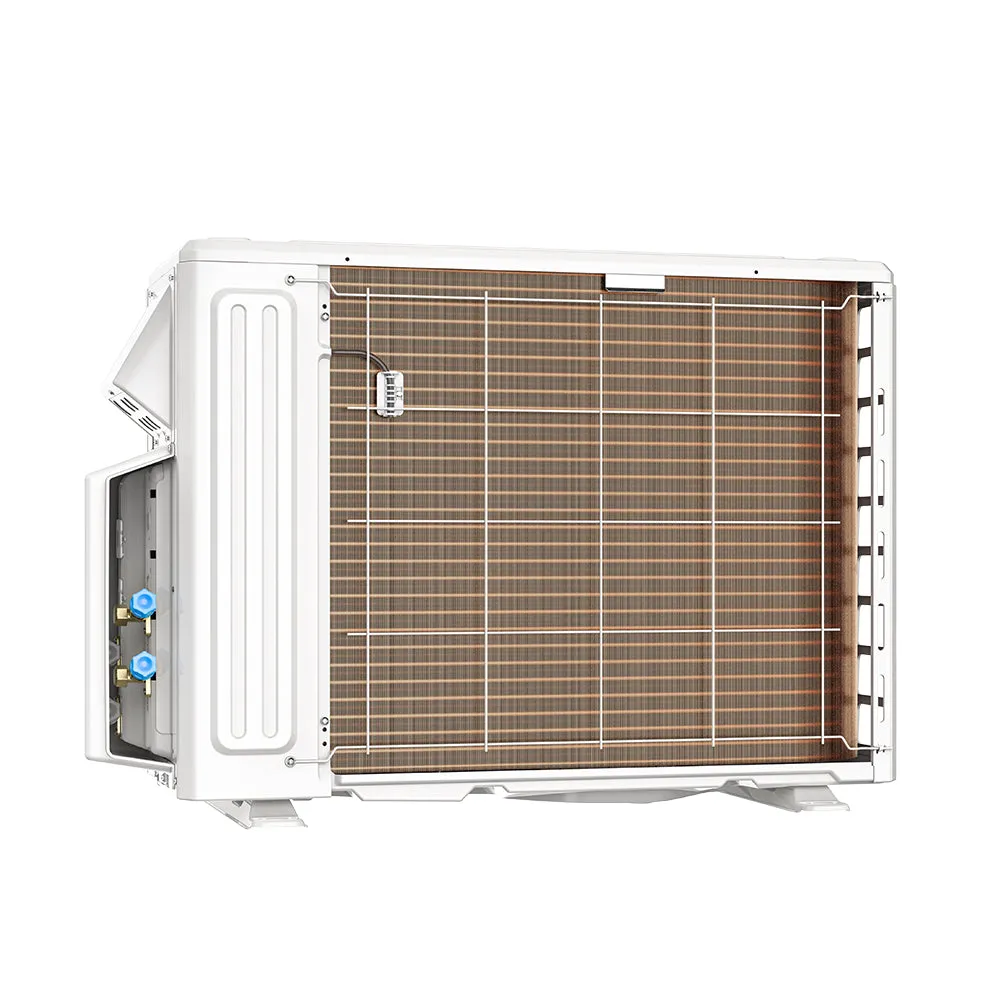

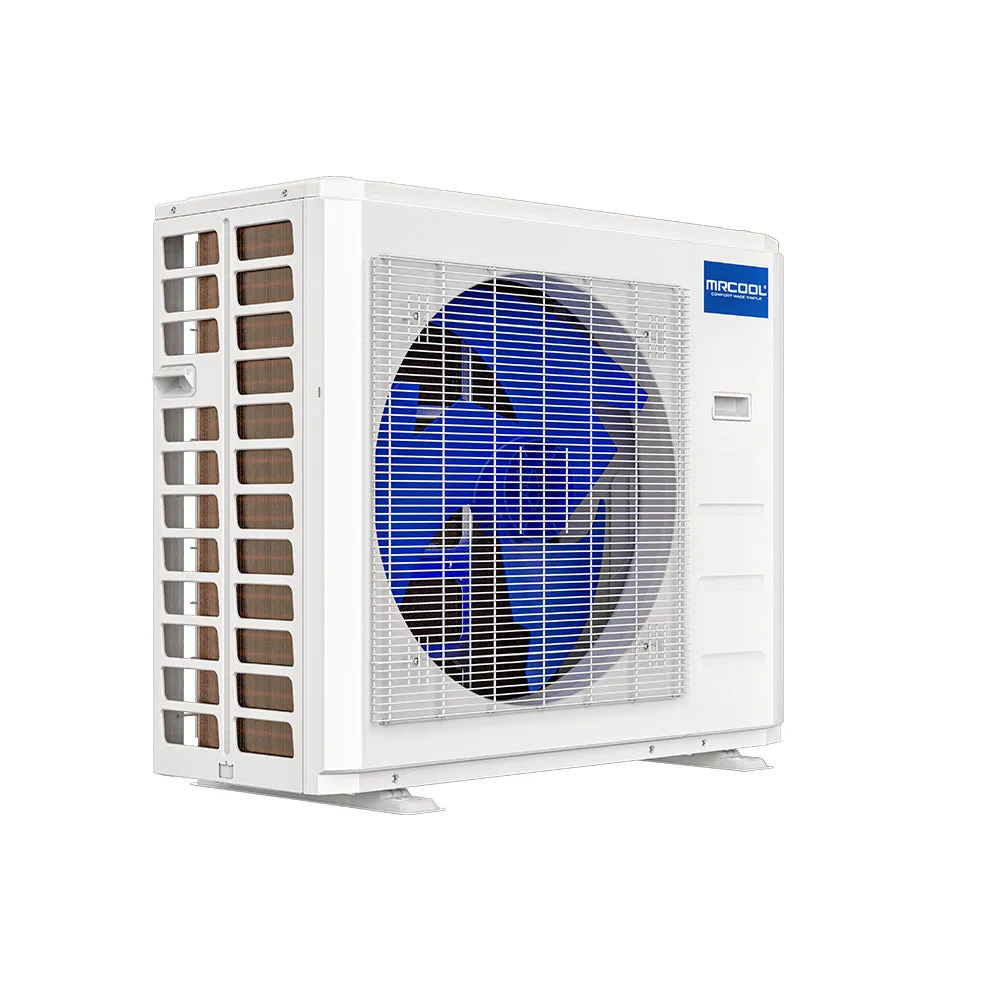

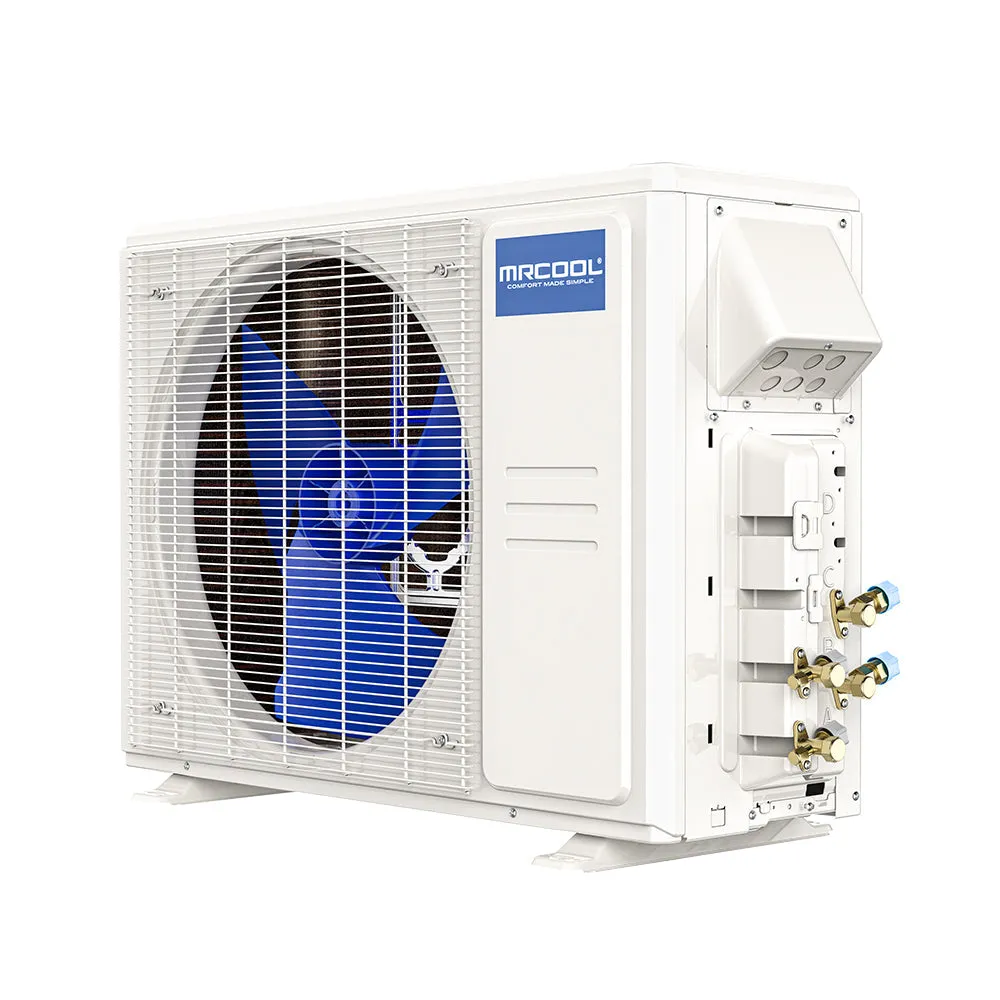

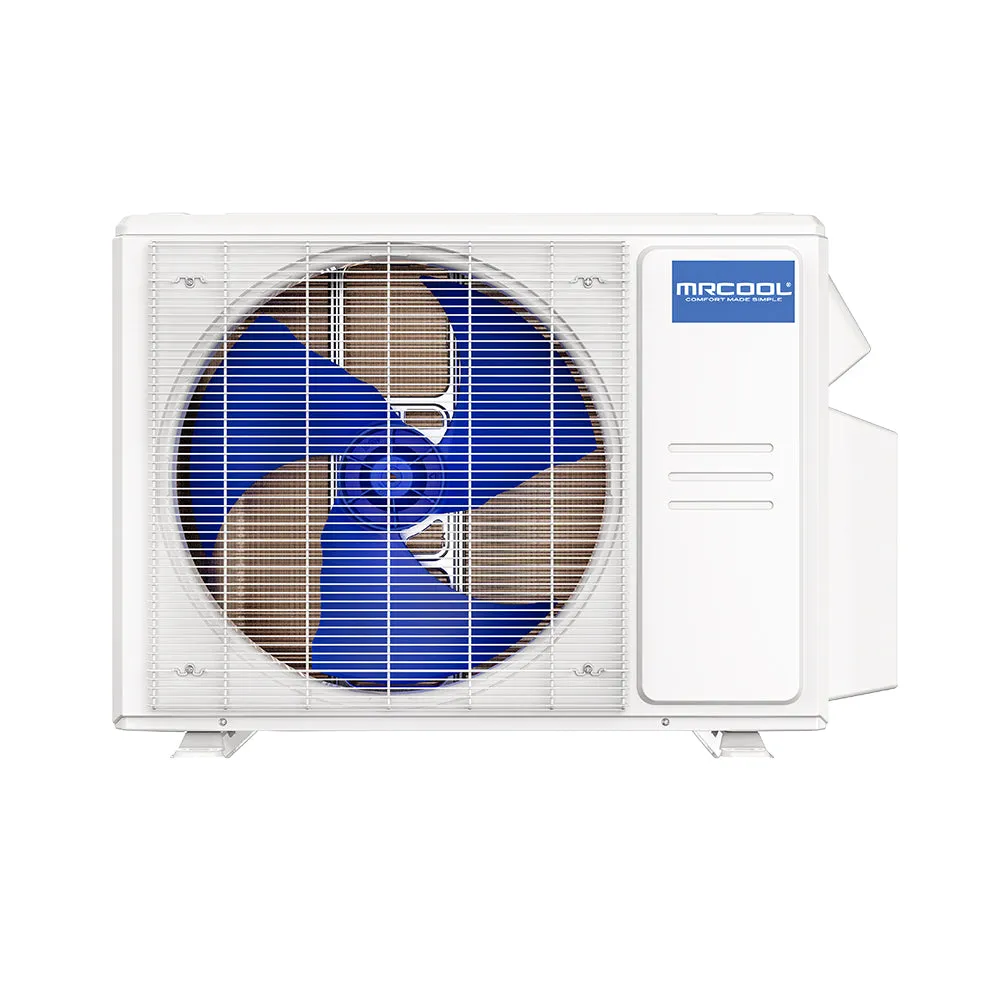

Condenser Features:

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
  • Energy-Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Line sizes 1/4”, 1/2” & 3/8”, 5/8”
  • Multi-Zone Condenser includes adapters for the air handlers (3/8", 5/8" Line Size) - see liquid line and suction line size columns

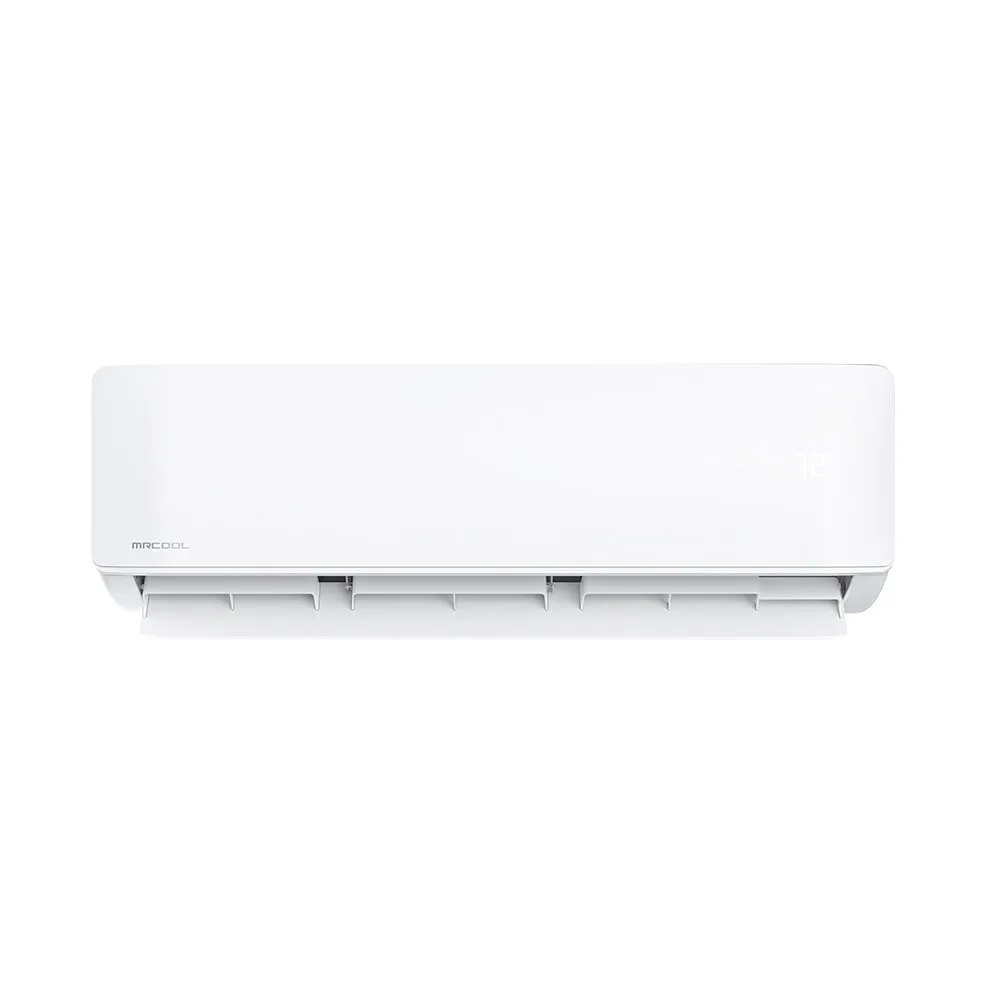

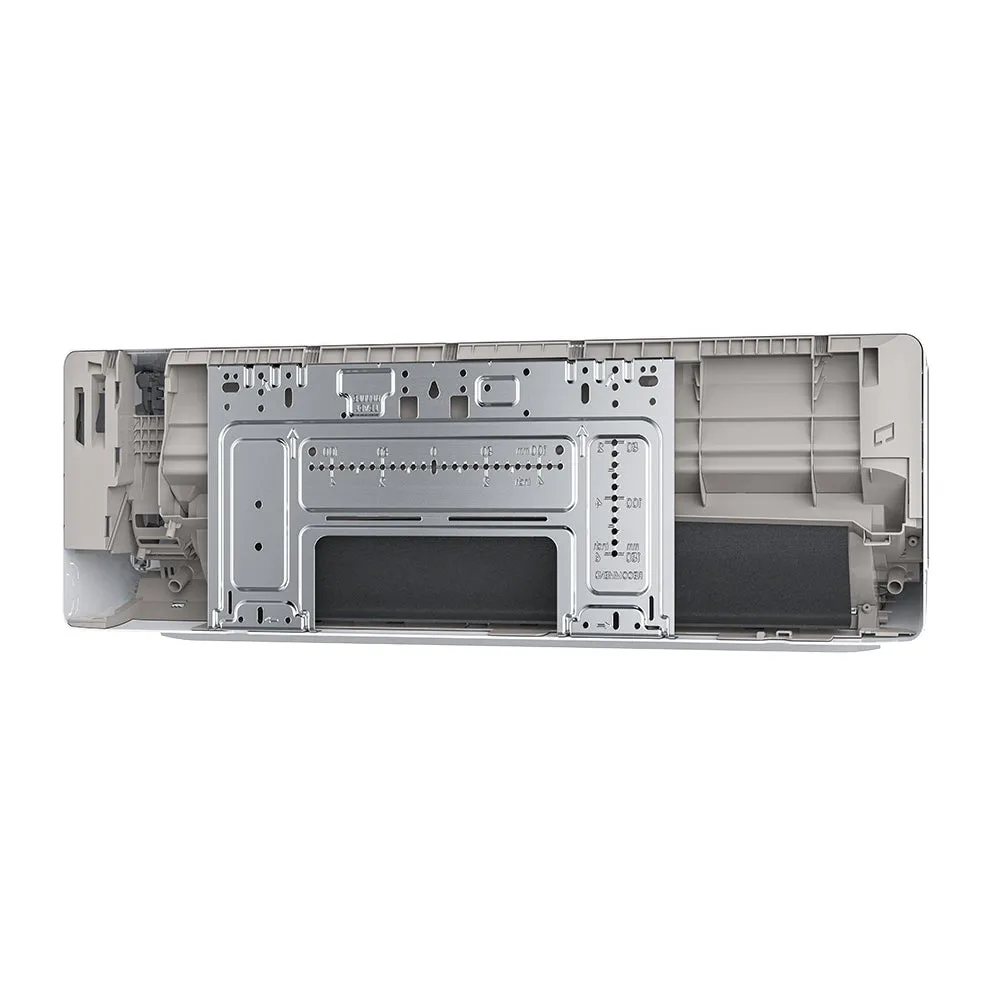

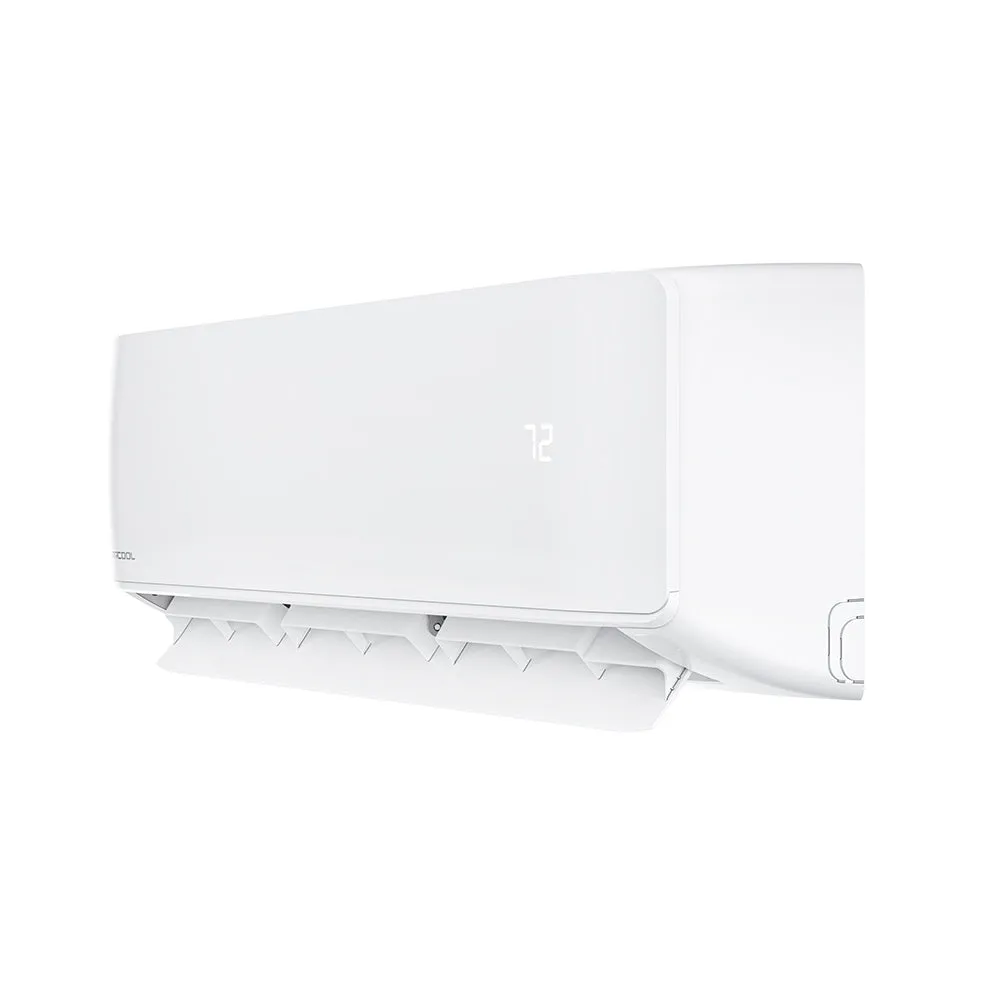

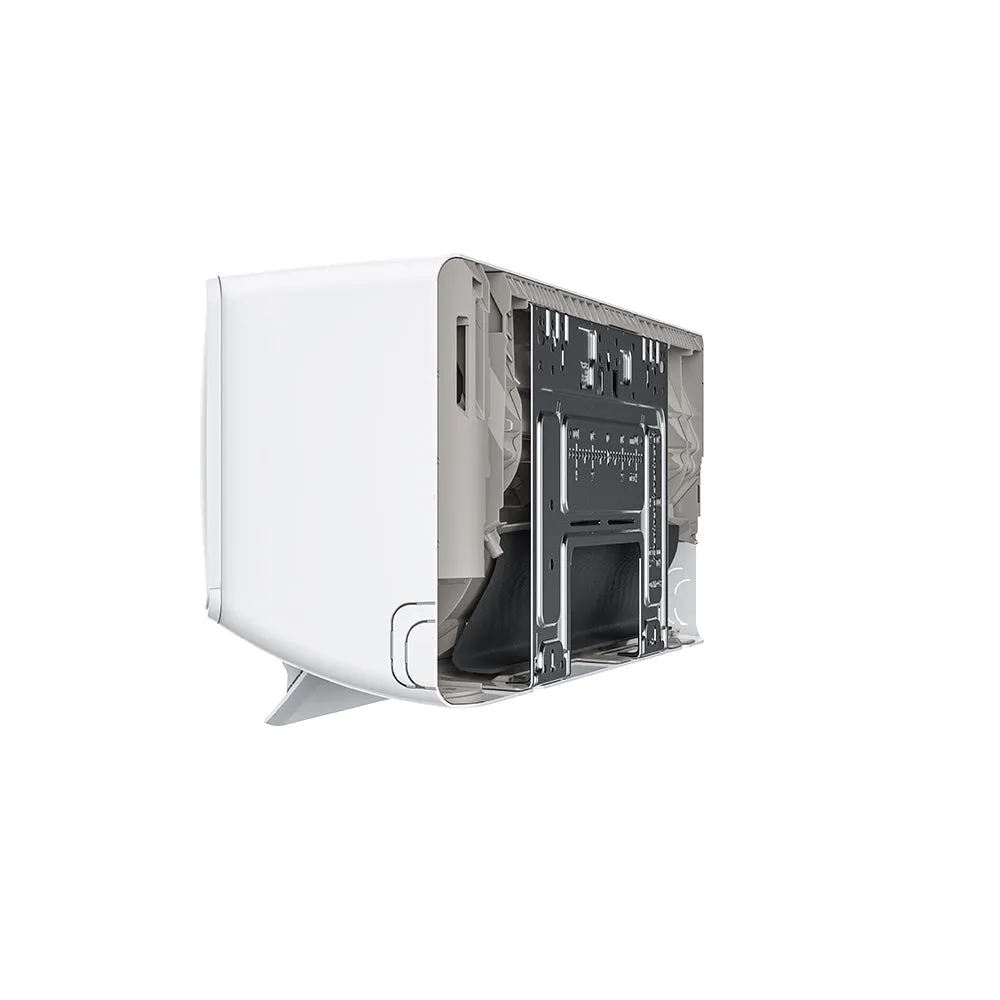

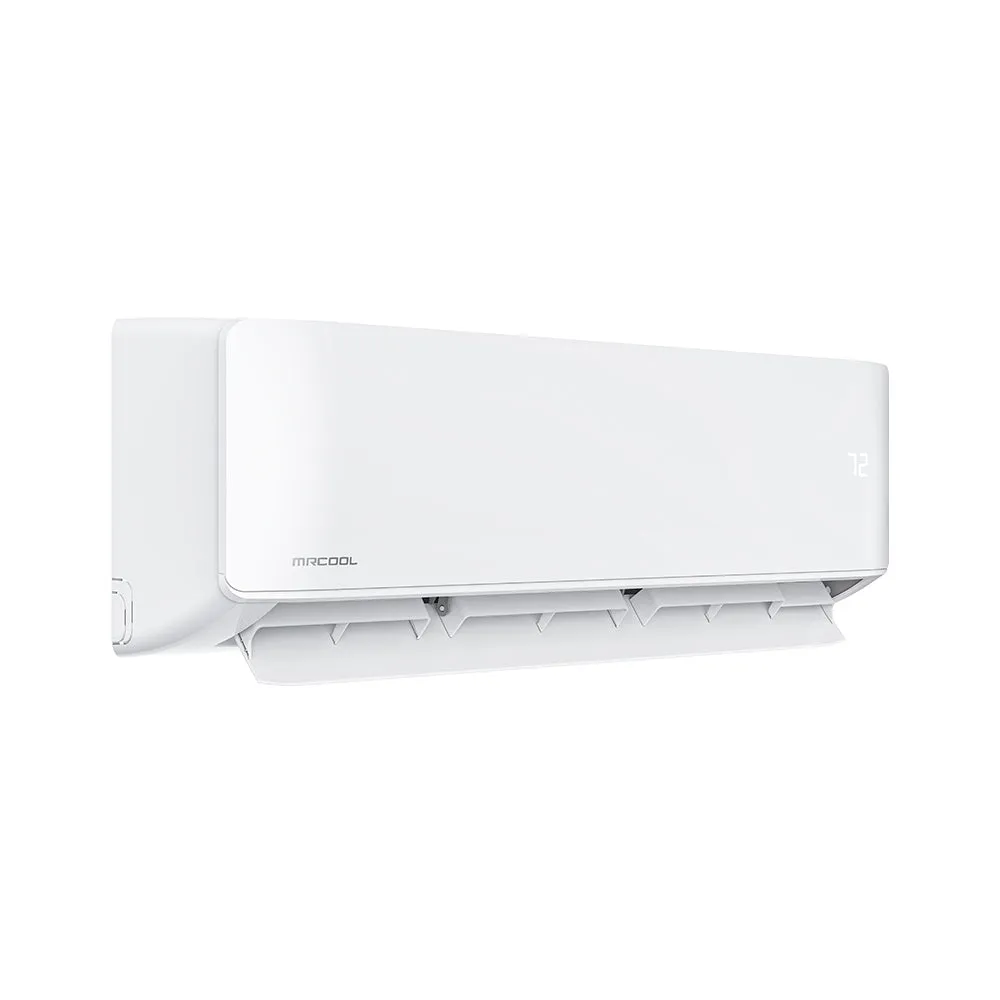

12K Air Handler Features:

  • Large Coverage Area. Air Handler covers an area of up to 500 sq. ft.
  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

18K Air Handler Features:

  • Large Coverage Area. Air Handler covers an area of up to 750 sq. ft.
  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

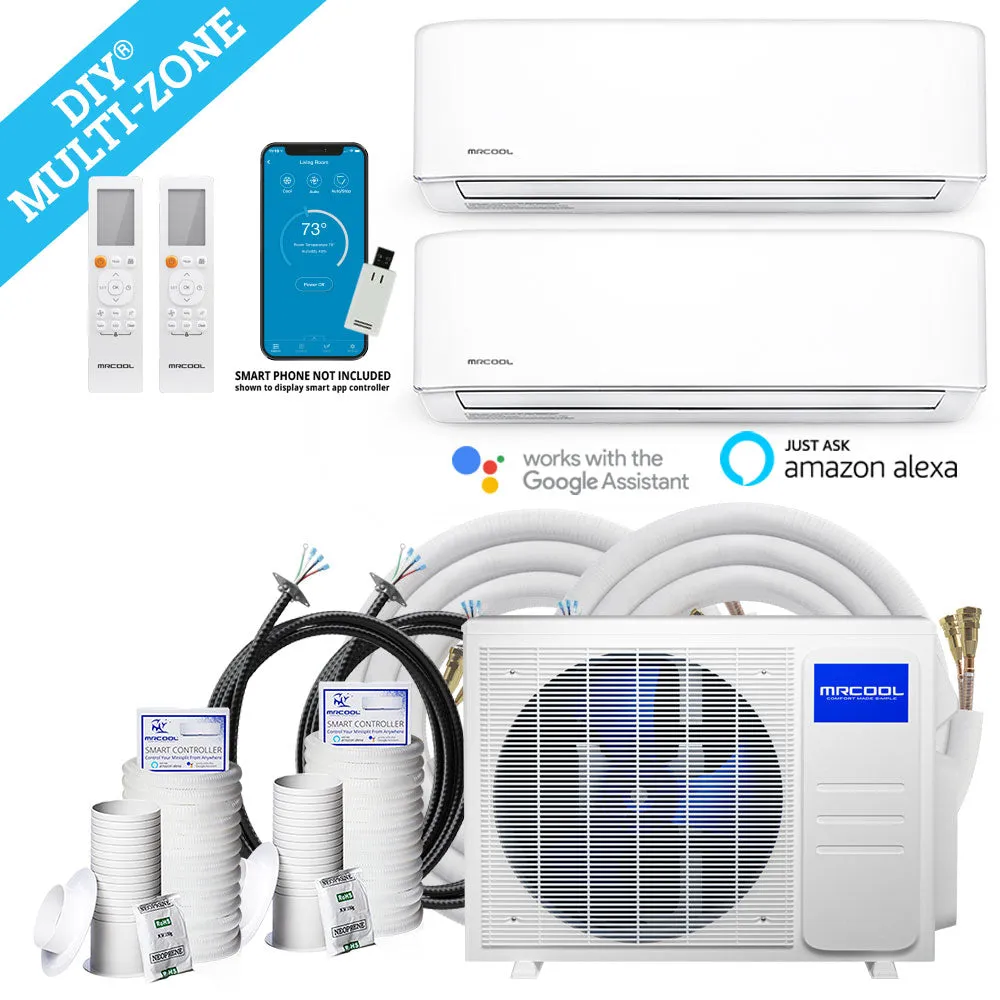

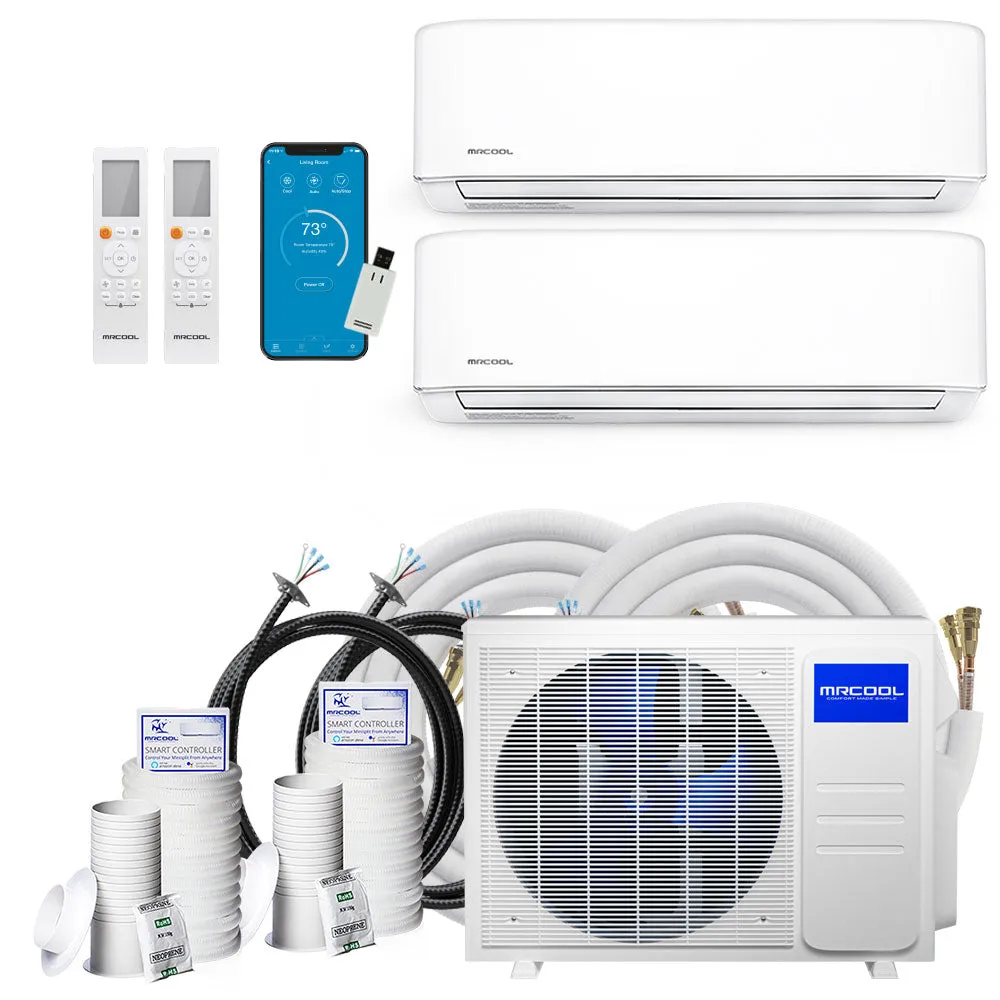

What's Included:

  • 1x Condenser
  • 2x Air Handlers
  • 2x Line Sets
  • 2x Remote Controls
  • 1x FREE GIFT: Free Condenser Wall Mounting Brackets ($119.99 Value)

Condenser Specifications:

MODEL DIY-MULTI3-27HP230C
SEER 22
EER 12
HSPF hspf4/hspf5 : 10.3/8.2
CFM 2129.41
COOLING CAPACITY
27000 BTU
HEATING CAPACITY
27000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
40 A
MIN CIRCUIT AMPACITY
26 A
COLOR White
COLOR FAMILY
White
ZONE CAPACITY
Up to 3
REFRIGERANT TYPE
R-410A
REFRIGERANT VOLUME
91.71 oz
DECIBEL RATING
61 dBA
INVERTER Yes
MIN AMBIENT COOL
5F ~ 122F
MIN AMBIENT HEAT
-13F ~ 75.2F
MAX LINESET LENGTH
172 ft TOTAL
LIQUID LINE SIZE
1/4in
SUCTION LINE SIZE
1/2in
COMPRESSOR MOTOR TYPE
Twin - Rotary
CONDENSER FAN MOTOR RPM
1050/900/850
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
NET DEPTH
16.14 in
NET HEIGHT
31.89 in
NET WIDTH
37.24 in
NET WEIGHT
139.99 lbs
GROSS DEPTH
19.88 in
GROSS HEIGHT
35.04 in
GROSS WIDTH
42.91 in
GROSS WEIGHT
157.19 lbs


12K Air Handler Specifications:

MODEL DIY-12-HP-WMAH-230C25
COOLING CAPACITY
12000 BTU
HEATING CAPACITY
12000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
15 A
MIN CIRCUIT AMPACITY
3 A
MOUNT TYPE
Wall
COLOR White
COLOR FAMILY
White
MAX COVERAGE AREA
Up to 500 sqft
REFRIGERANT TYPE
R-410A
DECIBEL RATING
35 dBA
DECIBEL RATING LOW
25 dBA
DECIBEL RATING HIGH
40 dBA
INVERTER Yes
LIQUID LINE SIZE
1/4 in
SUCTION LINE SIZE
1/2 in
BLOWER MOTOR RPM
1050/850/650
FAN ONLY OPTION
Yes
QUIET MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
ENERGY STAR CERTIFIED
Yes
AHRI CERTIFIED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
7.44 in
NET HEIGHT
11.69 in
NET WIDTH
31.57 in
NET WEIGHT
23.81 lbs
GROSS DEPTH
16.34 in
GROSS HEIGHT
13.98 in
GROSS WIDTH
36.02 in
GROSS WEIGHT
34.39 lbs


18K Air Handler Specifications:

MODEL DIY-18-HP-WMAH-230C25
COOLING CAPACITY
18000 BTU
HEATING CAPACITY
18000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MOUNT TYPE
Wall
COLOR White
COLOR FAMILY
White
MAX COVERAGE AREA
Up to 750 sqft
REFRIGERANT TYPE
R-410A
DECIBEL RATING
44.5/37/31
DECIBEL RATING LOW
31 dBA
DECIBEL RATING HIGH
44.5 dBA
INVERTER Yes
MAX LINESET LENGTH
98.42 ft
LIQUID LINE SIZE
1/4 in
SUCTION LINE SIZE
1/2 in
BLOWER MOTOR RPM
1120/950/700
FAN ONLY OPTION
Yes
QUIET MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
ENERGY STAR CERTIFIED
Yes
AHRI CERTIFIED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
8.90 in
NET HEIGHT
13.19 in
NET WIDTH
42.52 in
NET WEIGHT
34.61 lbs
GROSS DEPTH
19.57 in
GROSS HEIGHT
17.32 in
GROSS WIDTH
49.09 in
GROSS WEIGHT
56 lbs


Product Information & Guides:

Condenser


12K Air Handler


18K Air Handler
