iBasso DC07 Pro is the Ideal Ultra-Portable DAC Dongle With Top-Notch Power

• Features QUAD (x4) flagship DAC chips for high resolution audio
• High output power (430mW @32Ω) with low power consumption (as low as 80mA)
• 0.96" OLED screen with multi-function knob (supports iBasso for smartphone control)
• Supports DSD512 PCM 32bit/768kHz playback
• CNC machined Aluminum shell and tempered glass back cover
• Balanced 4.4mm and single-ended 3.5mm outputs

A Masterpiece Dongle

The DC07Pro is a dongle that combines iBasso's extensive experience in dongle development and design elements from their audio players. It utilizes advanced technologies to create a dongle with exceptionally low THD N at 0.000098%. Indeed, the DC07Pro has made significant advancements in its metrics, including dynamic range and output power.

FPGA: DC07Pro’s System Controller

The DC07Pro utilizes iBasso's in-house develop FPGA technology, which integrates the audio algorithms and constructs the system controller of the dongle. As the core of the DC07Pro, the FPGA plays the role of signal regeneration and clock synchronization. The FPGA also generates ultra-low jitter clocks for the DAC and USB receiver, effectively reducing the clock jitter caused by the USB bus.

(x4) CS43131, Flagship DAC Array

The DC07Pro utilizes x4 pieces Cirrus Logic flagship CS43131 DAC chips in combination with iBasso's exclusive FPGA technology. The results are a comprehensive leap in audio measurements. The AP measured THD N is a remarkable -120.2dB! Utilizing the exclusive FPGA, the DC07Pro supports DSD512 and PCM 32bit/768kHz thanks to the CS43131×4 DAC array.

Impressive Power Efficiency

DC07Pro utilizes a synchronous DC-DC converter with a power conversion efficiency of up to 94%. The power consumption of the DC07Pro is as low as 80mA, 40% lower than that of , and the output power is increased by 82%! The DAC power supply adopts an ultra-low noise LDO dedicated for analog circuits, with a PSRR (power supply rejection ratio) of up to 100dB to ensure the purity of the power supply.

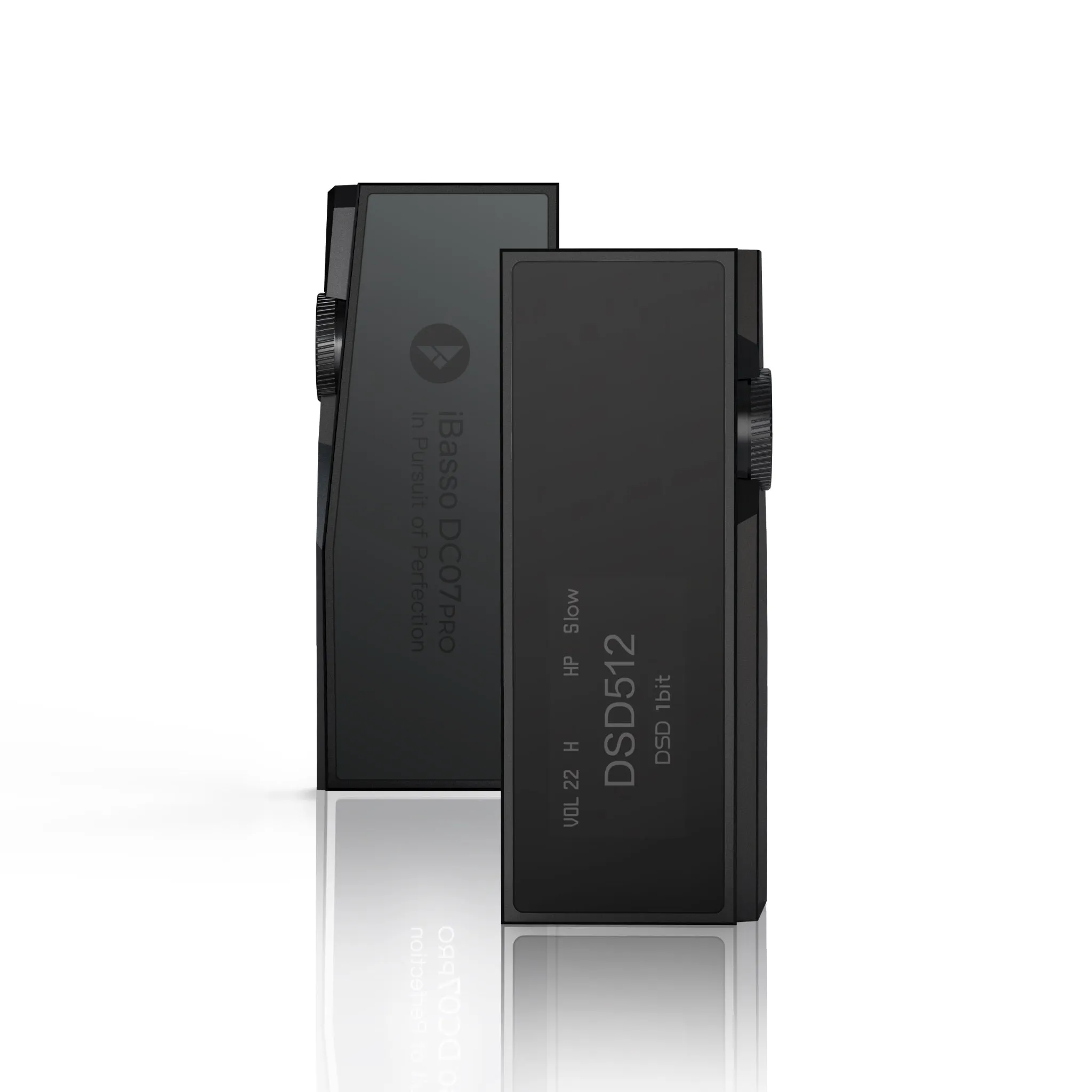

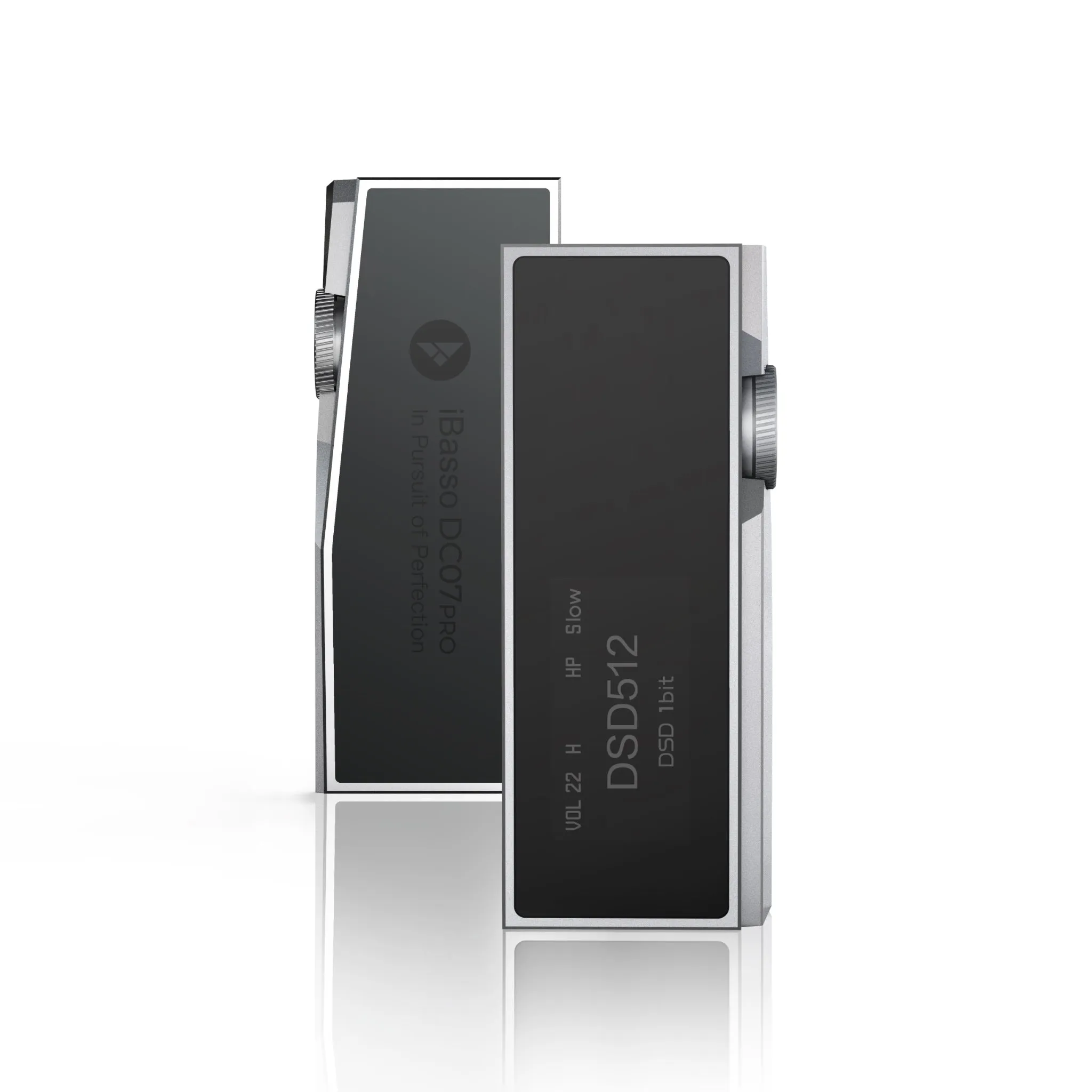

OLED Convenient & Intuitive Operation

The DC07Pro has a 0.96" OLED screen and is equipped with an ALPS encoder. One can browse and complete all settings using the multi-function knob. Simply rotate and press the multi-function knob to complete volume adjustments, digital filter settings, etc. The DC07Pro also supports the iBasso , which allows you to control all settings with your Android device!

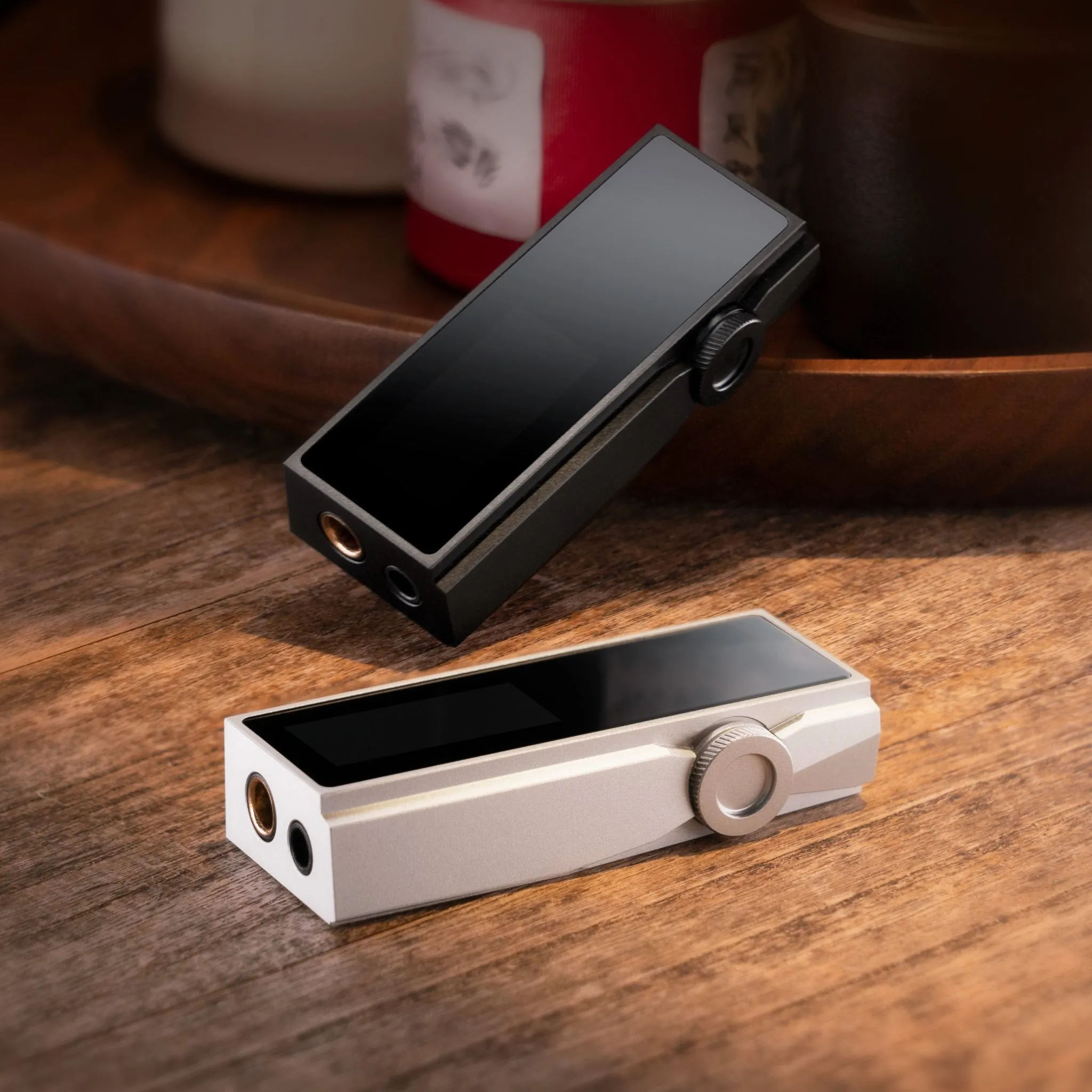

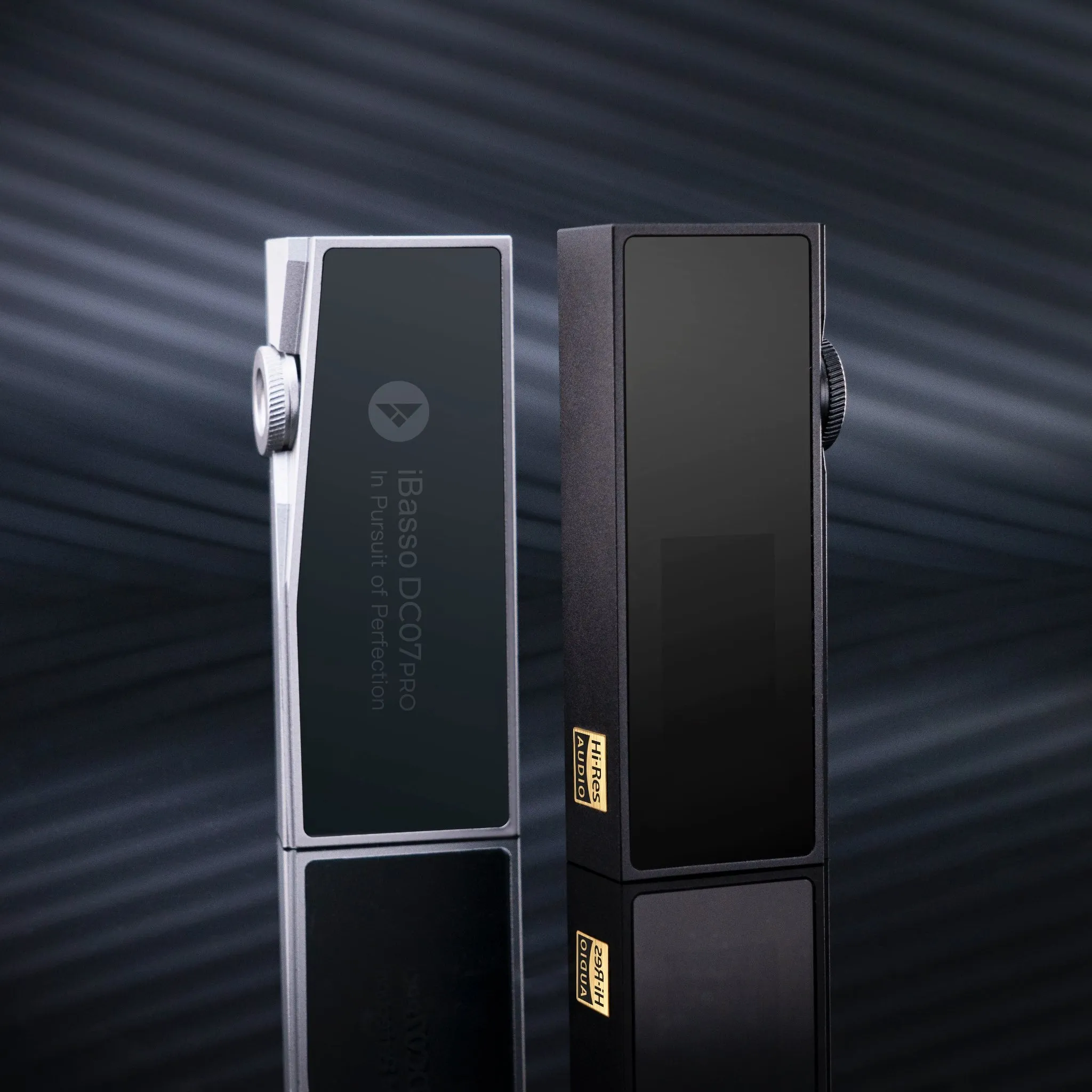

An Attractive DAP-like Design

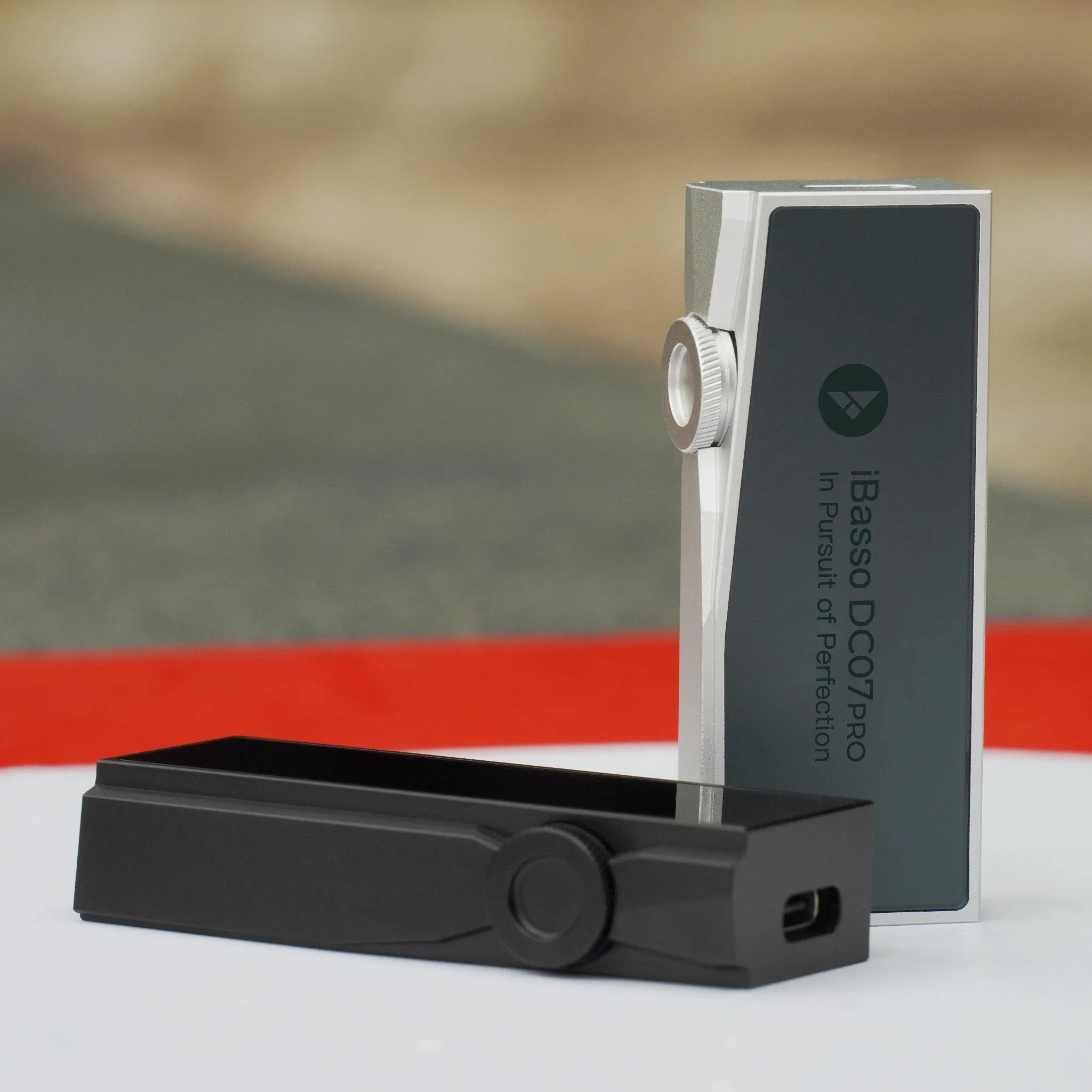

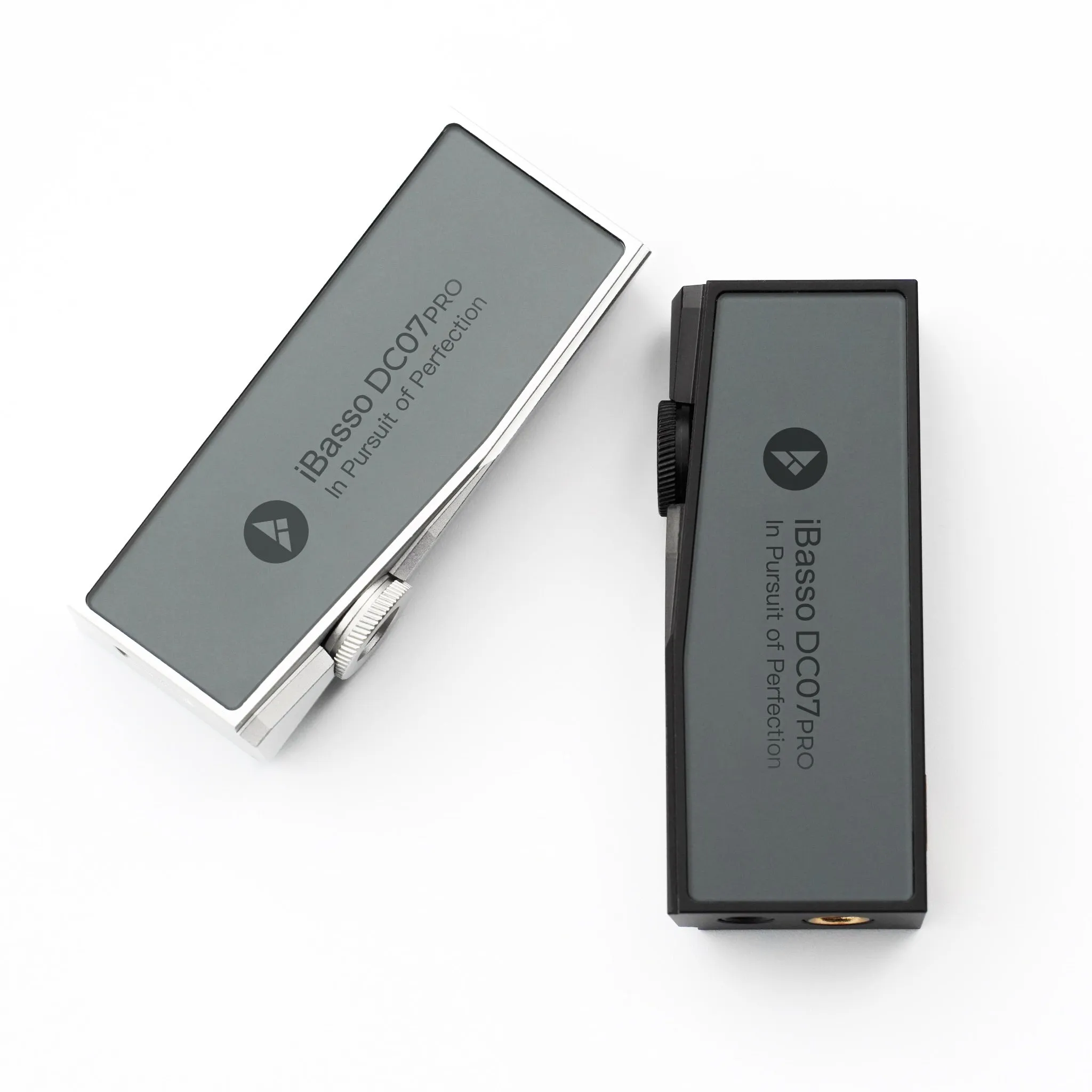

The shell of the DC07Pro is CNC machined Aluminum, the top is the OLED screen, and the back cover is tempered glass. Additionally, a knob has been strategically positioned on the side. The style and precision exude a sense of luxury and sophistication, reminiscent of high-end DAPs.

32bit/768kHz SPDIF Output

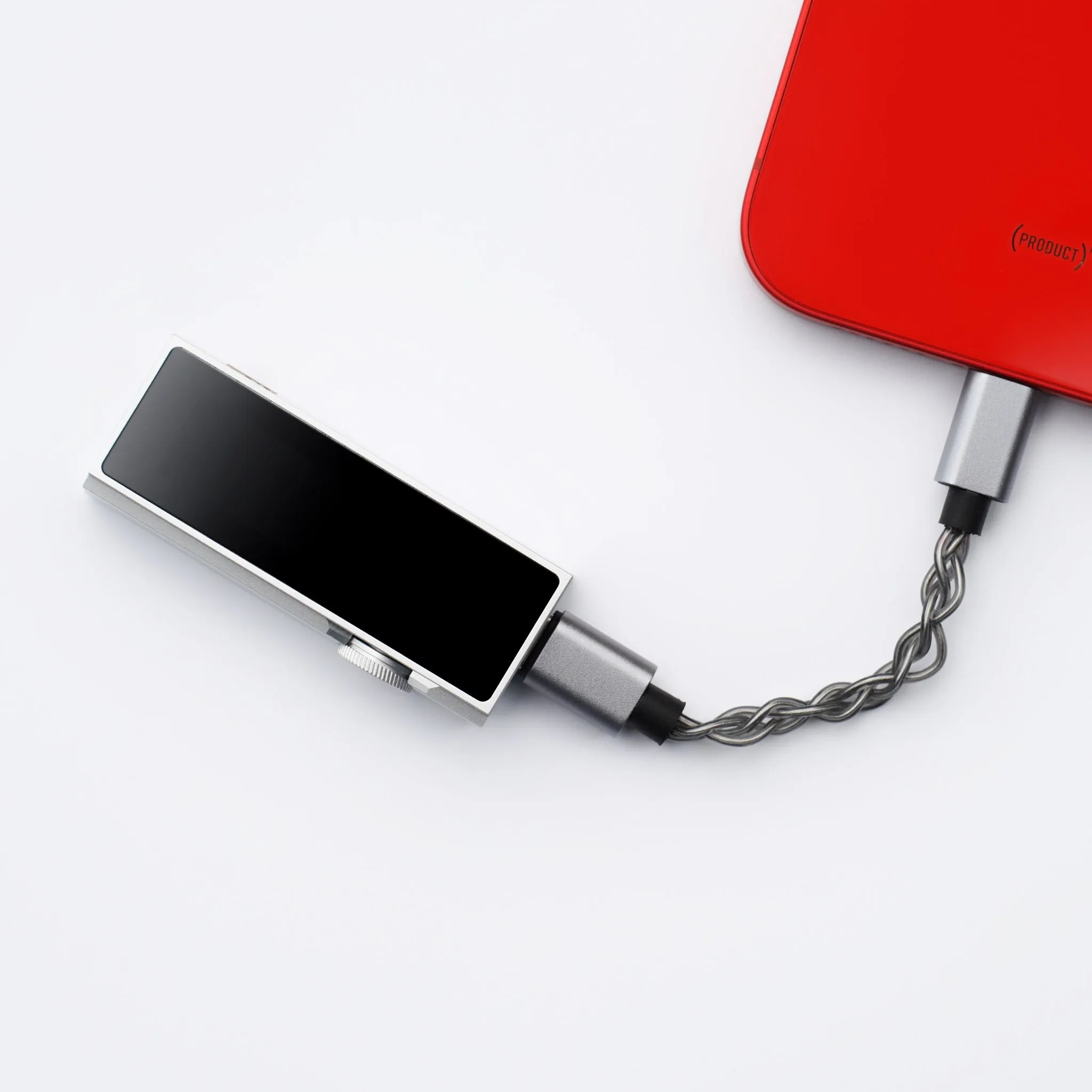

The DC07Pro supports SPDIF output up to 32bit/768kHz. With the DC07Pro, your smartphone also can now be a top-tier SPDIF transport device!

Specifications

General

• DAC Chipset: Quad
• PCM: Up to 32bit/768kHz
• DSD: Native DSD up to 512x
• Size: 2.32" x 0.93" x .49"
• Weight: 23g

4.4mm Balanced Output

• Output Power
  • 510mW 510mW @16Ω, THD N <0.1%
  • 430mW 430mW @32Ω, THD N <0.1%
• Output Voltage
  • 2.8Vrms (low gain)
  • 3.5Vrms (mid gain)
  • 4Vrms (high gain)
• THD N: -120.2dB (0.000098%) @1kHz 300Ω load
• SNR Dynamic Range: 134 dBA
• Crosstalk: 142dB
• Noise Floor: 0.85μV
• Frequency Response: 10Hz-80kHz -0.5dB

3.5mm Single-ended Output

• Output Power
  • 210mW 210mW @16Ω, THD N <0.1%
  • 118mW 118mW @32Ω, THD N <0.1%
• Output Voltage
  • 1.4Vrms (low gain)
  • 1.73Vrms (mid gain)
  • 2Vrms (high gain)
• THD N: -116dB (0.00017%) @1kHz 300Ω load
• SNR Dynamic Range: 129 dBA
• Crosstalk: 136dB
• Noise Floor: 0.76μV
• Frequency Response: 10Hz-75kHz -0.5dB

In the Box

• DC07Pro DAC
• USB-C to C cable
• USB-C to Lightning cable
• USB-C to A converter
• User manual warranty card
