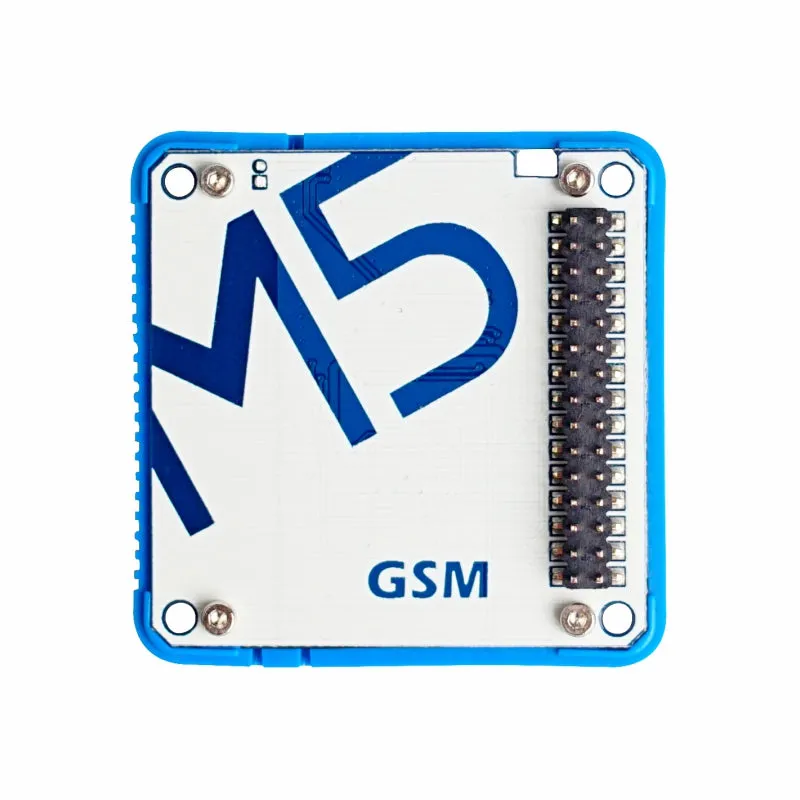

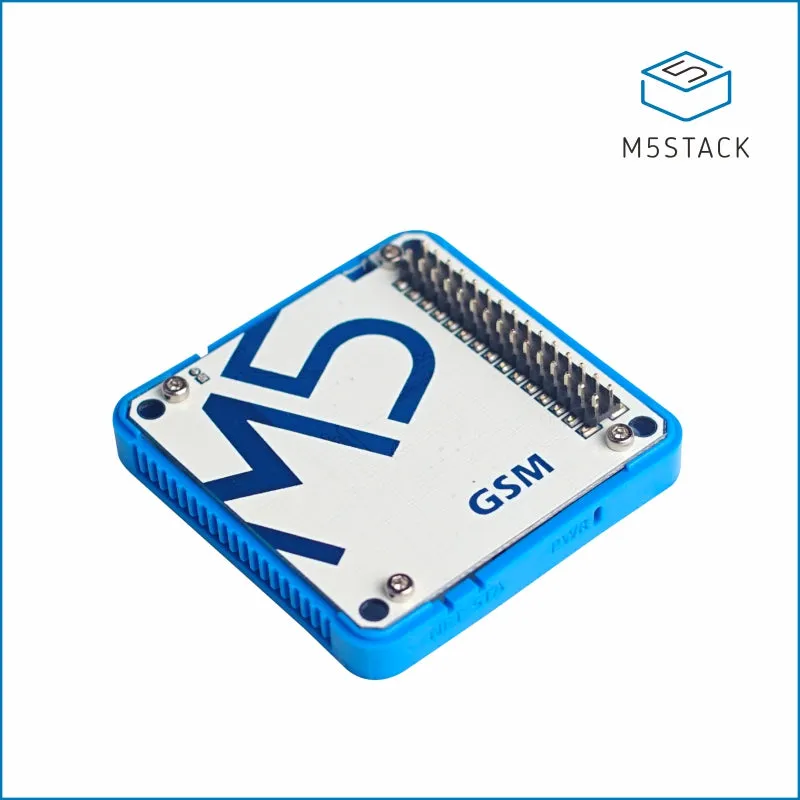

Description

This is a 2G and industrial wireless communication module, integrated an GSM/GPRS module M6315, released by China Mobile,supported GPRS class12 and GPRS CS-1, CS-2, CS-3, CS-4 encode, M6315 has LCC package type, features tiny dimension, highly reliability, strong anti-interference capability.
It can apply to the communication requirement on diversity industrial, electricity, petroleum, transportation, financial, etc

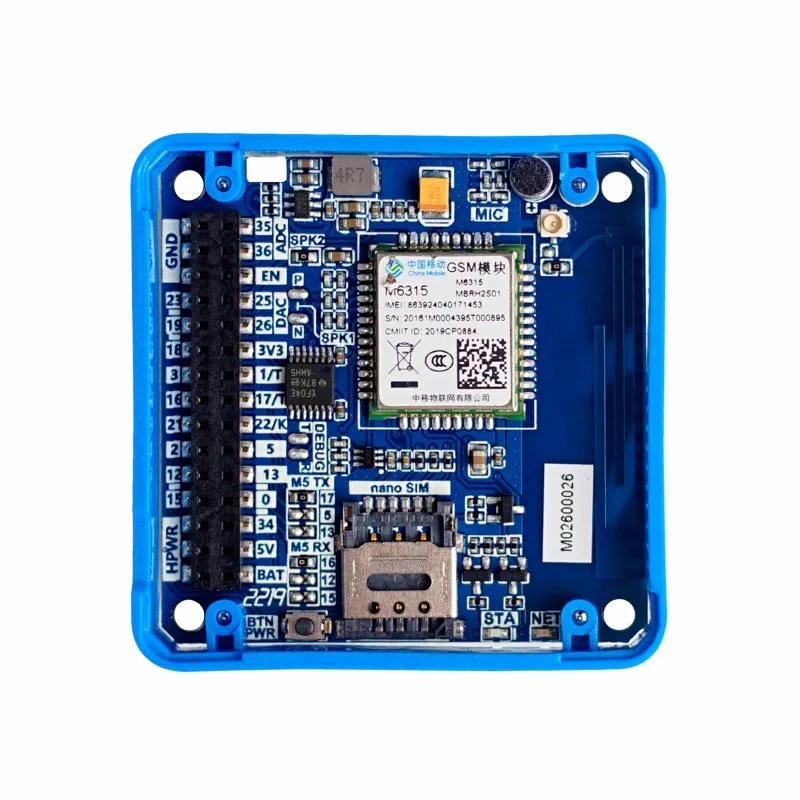

In the GSM module scheme, we added more hardware resources, 1 reserved speaker- SPK1, 1 onboard speaker-SPK2, LEDs, 2 alternative antenna.
M6315 is 2.8V power input, so in the hardware of GSM module, we added a Bidirectional Voltage-Level Translator (TXS0104E), to switch the power supply to 2.8V.

This product is EOL now, we've released the updated version which is fully compatible with this product.

Power Operation:

Power On: GPIO2 stay HIGH for 2s
Power Off: GPIO2 stay HIGH for 8s
Power On: Button long-press for 2s
Power Off: Button long-press for 8s
Reset module: GPIO26 HIGH

Product Features

Product Feature:

Serial communication: UART 16/17

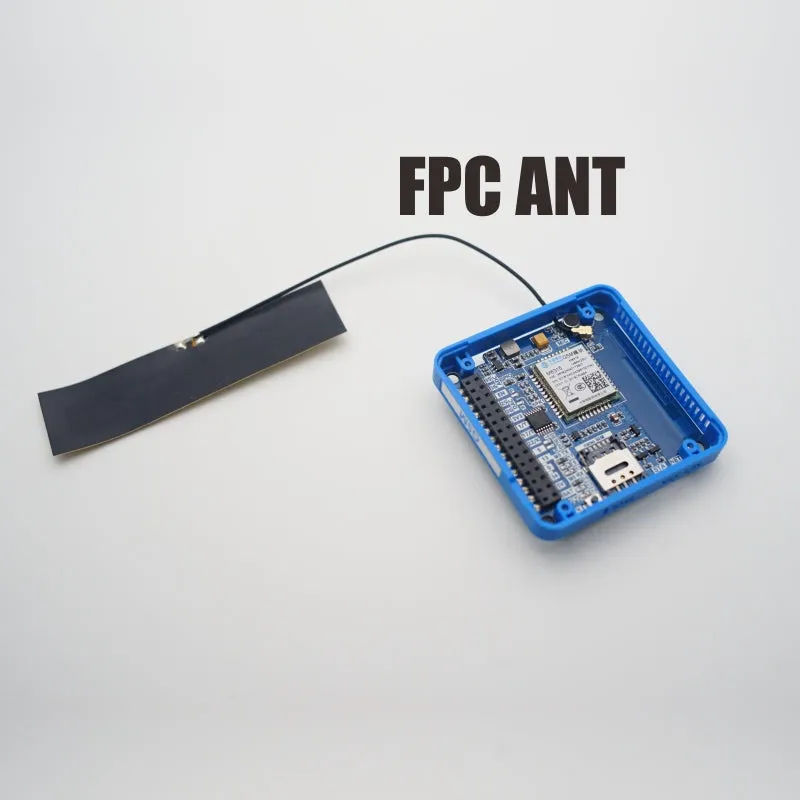

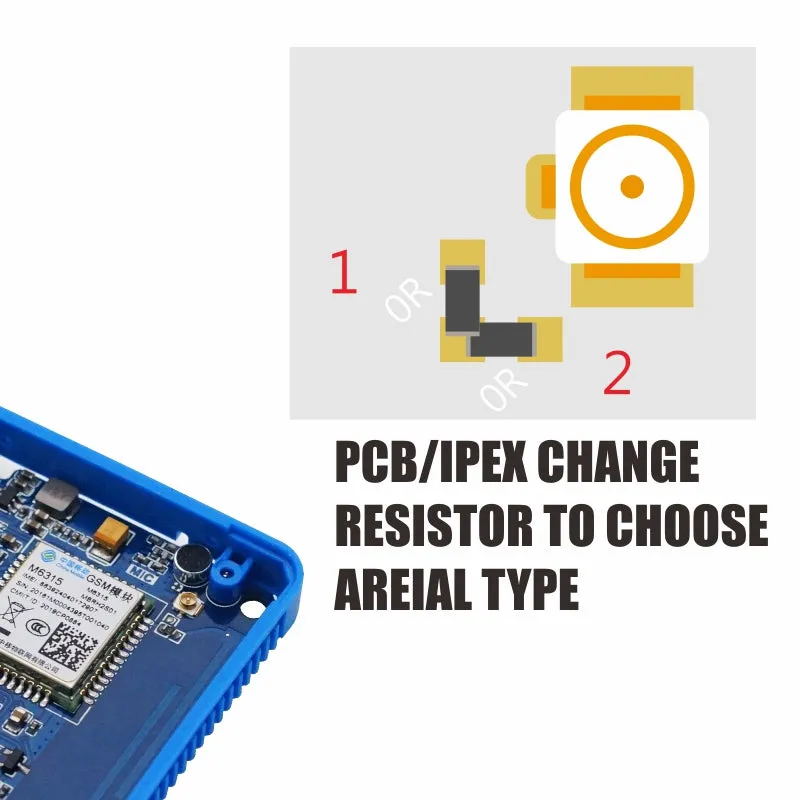

External Antenna support
GSM 2G industrial level
SIM card type: Nano
2x LEDs

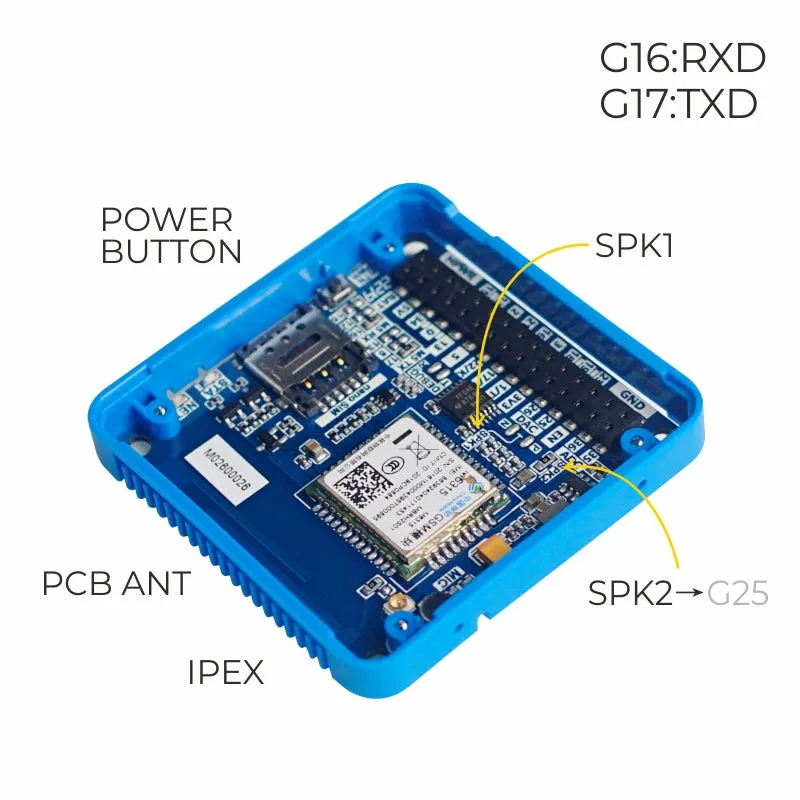

2X speakers: SPK1 reserved, SPK2 connected to PIN25
M6315
- Tem:-40°C ~ 85°C
- Frequency Band（MHz:
  - 850/900/1800/1900
- Data Transmit:
  - speed: (kbps) 85.6(UL)/85.6(DL)
  - GPRS: Class12
  - SMS: supported PDU/TEXT mode
  - Network Protocol: IPV4/IPV6*/TCP/UDP/PPP/HTTP/FTP/MQTT
- Consumption:
  - <2mA@DRX=5
