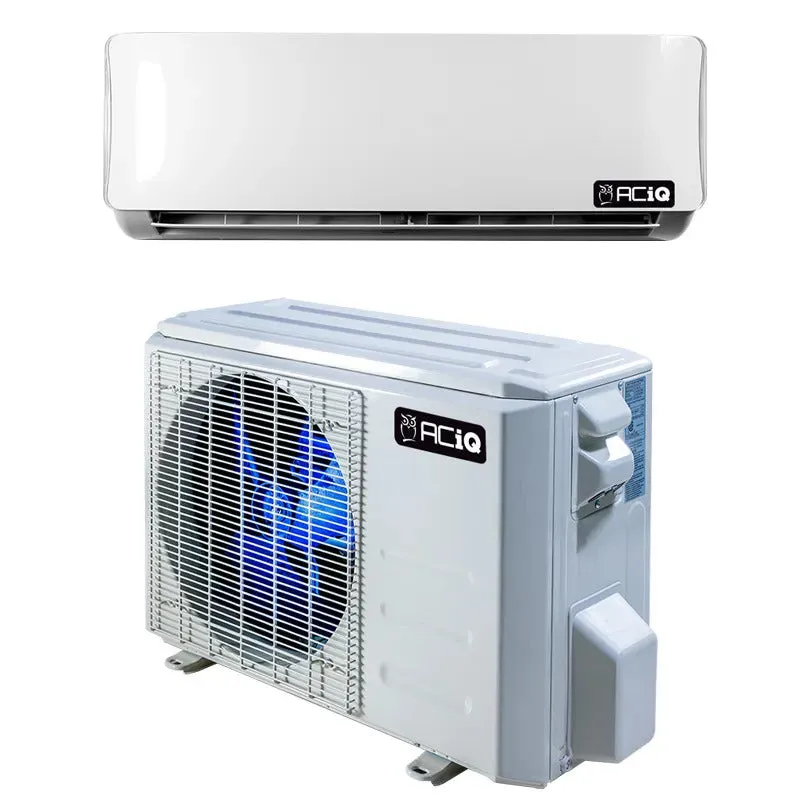

36,000 BTU 17.5 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - ACIQ-36W-HP230B / ACIQ-36Z-HP230B
ACiQ’s mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
Features:
- Intelligent comfort at an affordable cost
- Ideal for large spaces up to 1,500 square feet (depending on climate)
- Efficient cooling from -4°F to 122°F outdoor temperatures
- Efficient heating from -4°F to 57°F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- Included Smart Remote
- WiFi compatibility through free app, Amazon Alexa or Google Assistant
Important: This equipment model does not feature quick-connect line set connectors and is not intended for do-it-yourself installation. Additional installation materials such as line sets, control wire, drain hose, whip, and disconnect are not provided with the unit but can be purchased separately from the Accessories section above on this page. It is essential to enlist the services of a professional to add more refrigerant and vacuum the lines as needed. While the automated cleaning function effectively cleans your system, it is advisable to manually clean the unit's filters from time to time.

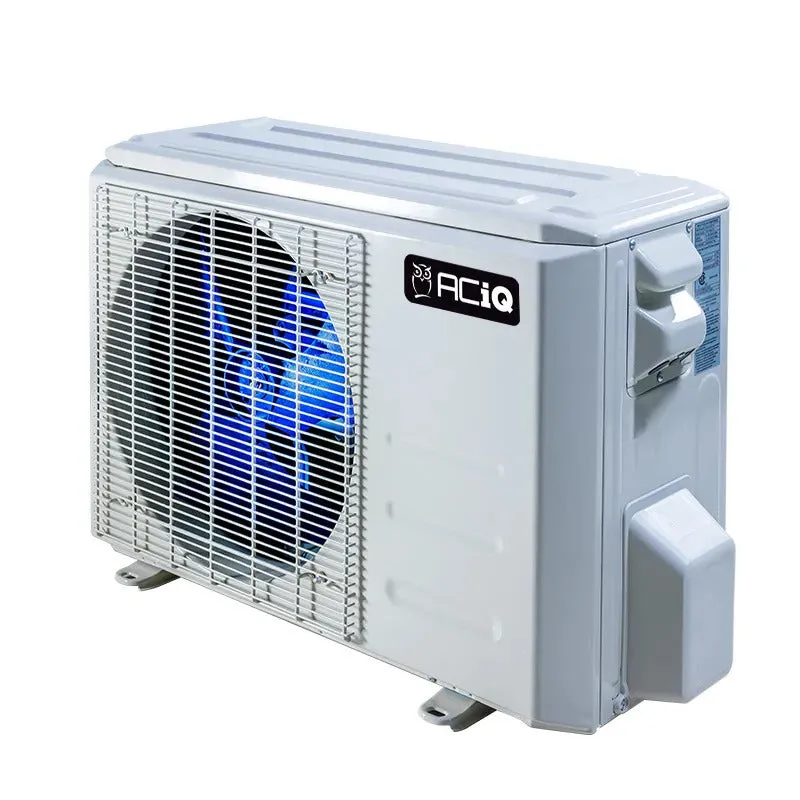

Condenser Specifications:
| Brand | ACiQ |
| Model | ACiQ-36Z-HP230B |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 150.13 |
| AHRI Certificate Number | 207825530 |
| HSPF2-4 | 8.7 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Decibel Level (dBA) | 63.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 16-17 |
| SEER2 (Efficiency) | 17.5 |
| EER | 8.5 |
| Compressor Type | Rotary |
| Condenser Fan Speed (r/min) | 1150/1050/900/850 |
| Max Air Flow | 2235 CFM |

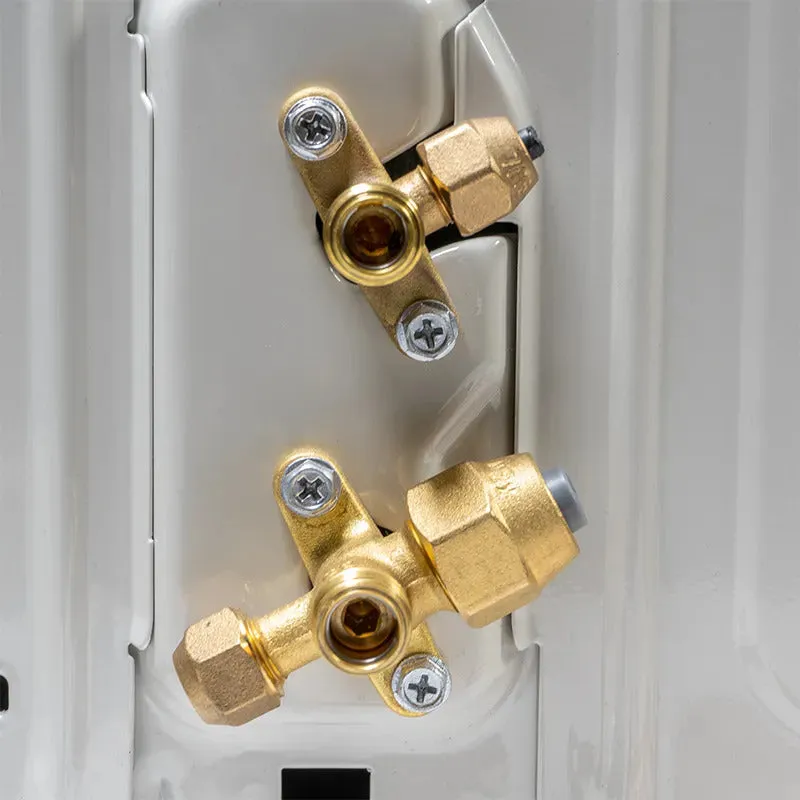

| Liquid Line | 3/8" |
| Suction Line | 5/8" |

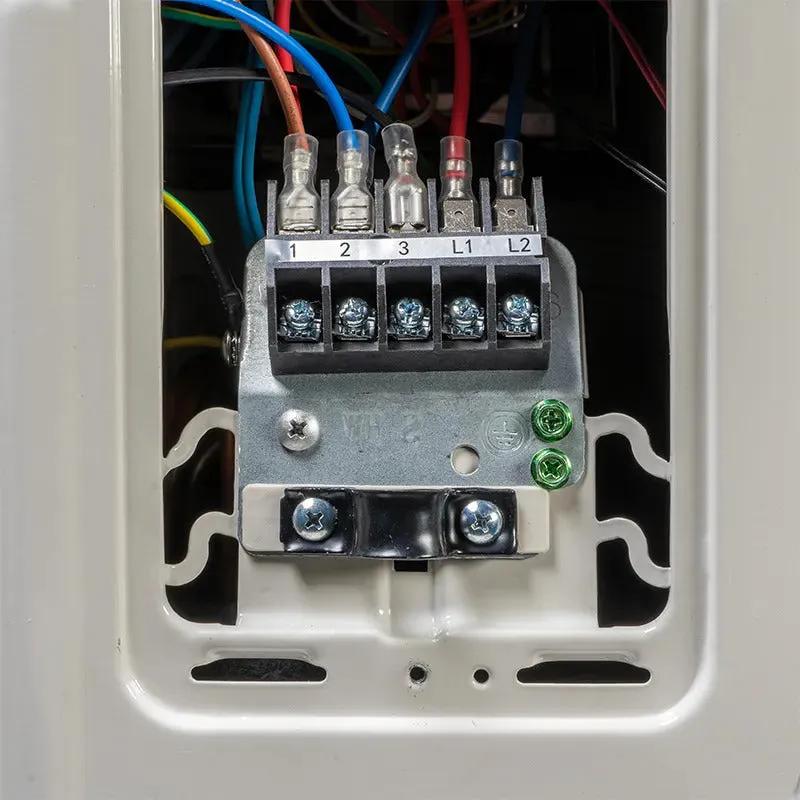

| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 35 |
| Min. Breaker Size | 28 |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Safety Information | PROPOSITION 65 WARNING |
| Warranty | 12-Year Compressor / 7-Year Parts with Registration |

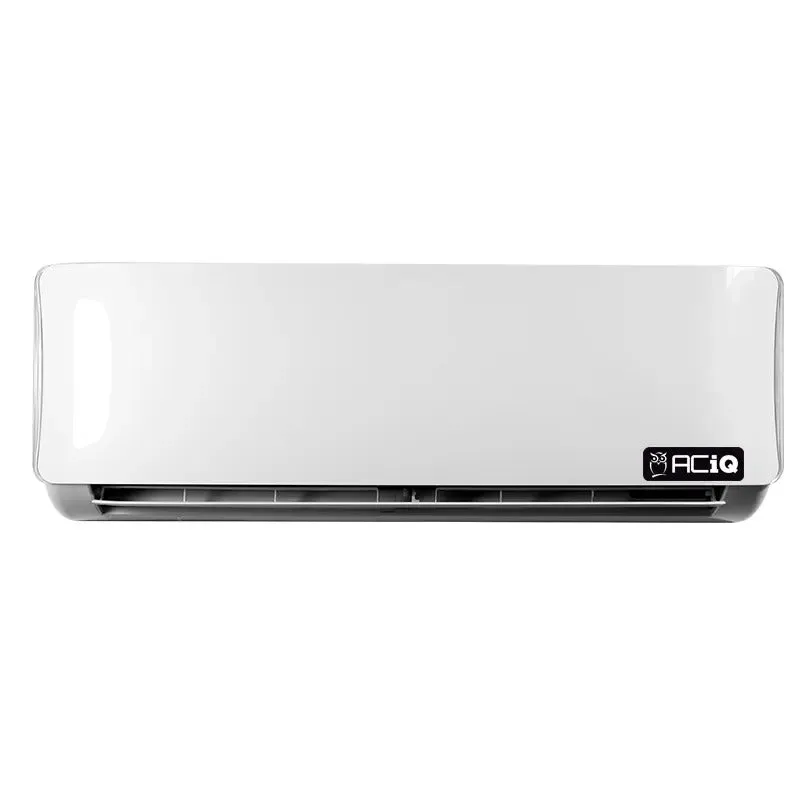

Air Handler Specifications:
| Brand | ACiQ |
| Model | ACiQ-36W-HP230B |
| Weight (in lbs) | 40.34 |
| AHRI Certificate Number | 207825530 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Indoor air flow (Hi/Med/Lo) (No duct) | 882.35/732.35/517.65/400.00 (CFM) |
| Indoor noise level (Hi/Med/Lo) | 56.5/54.5/40 dB(A) |
| Dehumidification (L/H) | 4.72 |
| Electric Heat | Heat Pump |
| Energy Star | No |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 14.25" |
| Width | 49.57" |
| Depth | 11.10" |
| Safety Information | PROPOSITION 65 WARNING |
| Warranty | 12 year compressor, 7 year parts with online registration |
